A-Series
Compact, hydraulic magnetic circuit breaker, ideal for full load amp applications. 1-6 poles; ratings from 0.02 to 50 amps, up to 277VAC or 80VDC; UL Recognized, UL Listed, UL1500, UL1077, TUV, VDE, CSA. Various actuator styles including sealed toggle.
- Transportation
- Marine
- Telecommunications
- Military
- Renewable Energy Systems
- Generators & Welder Markets

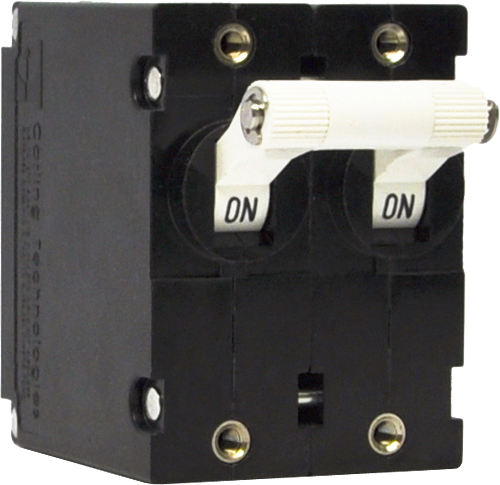

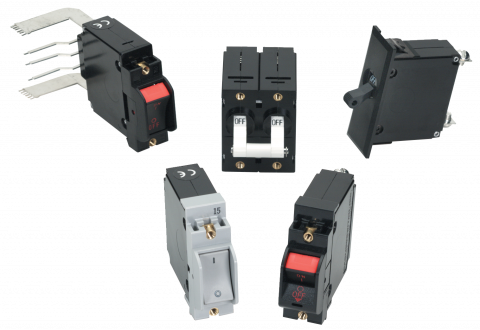

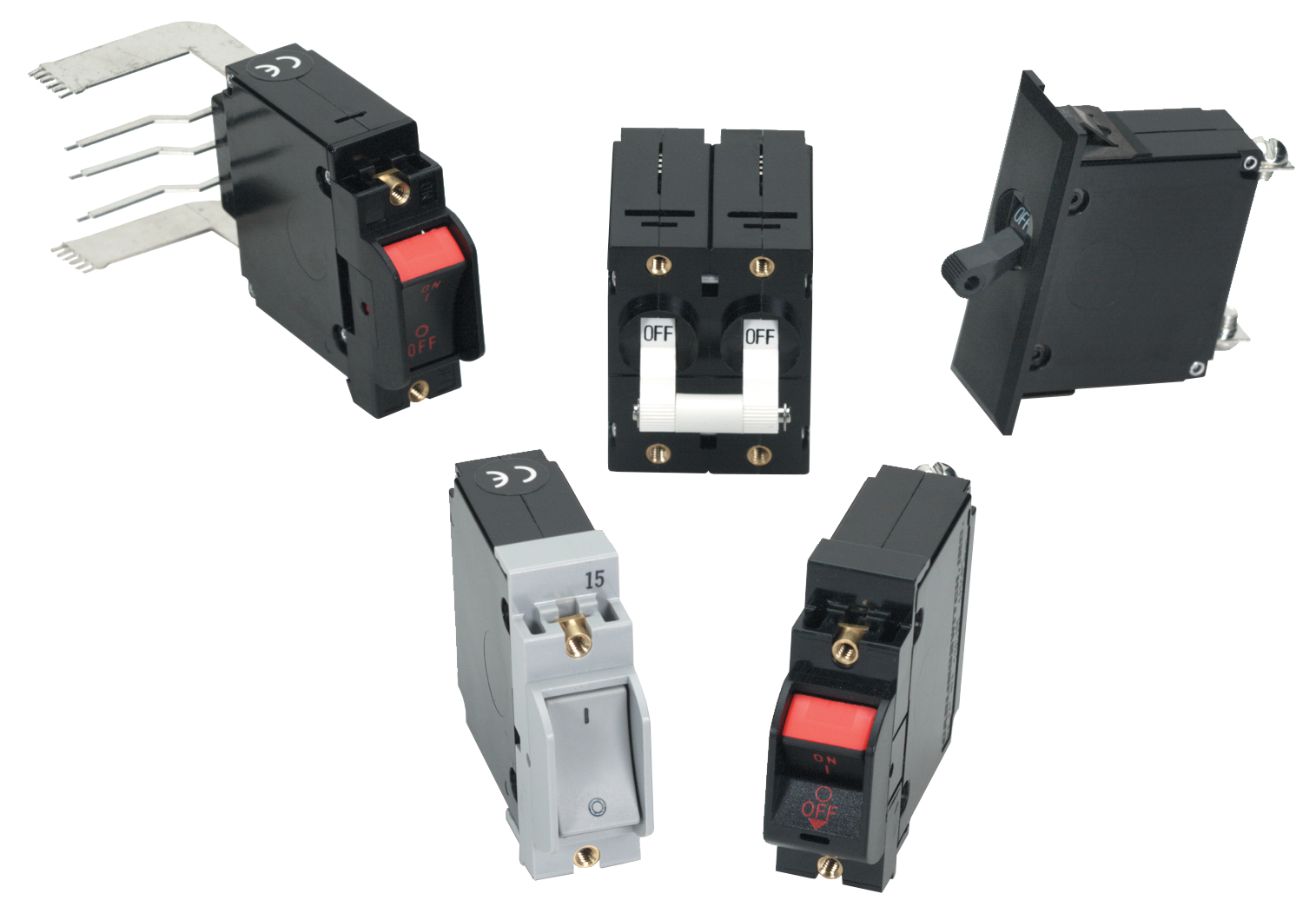

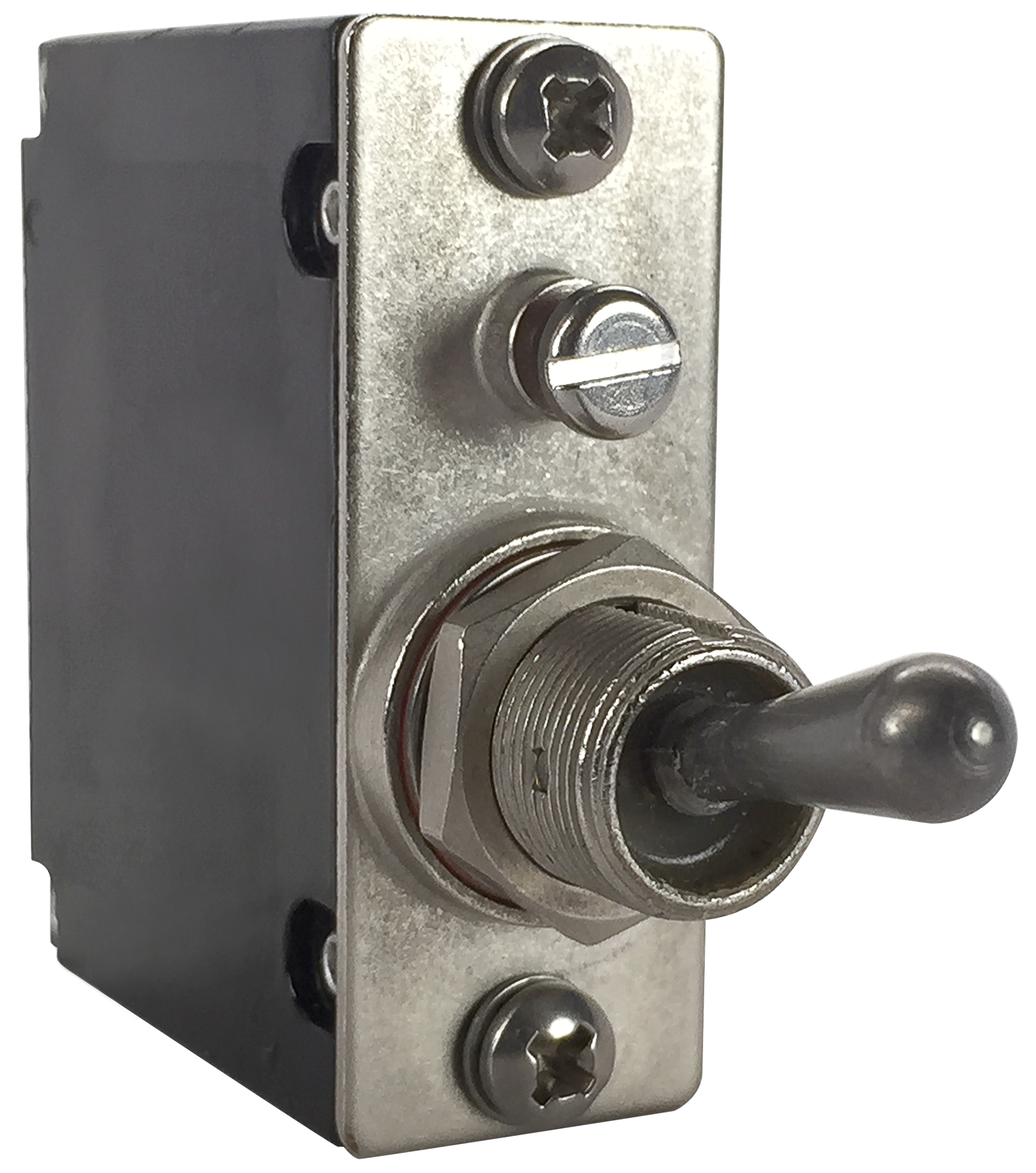

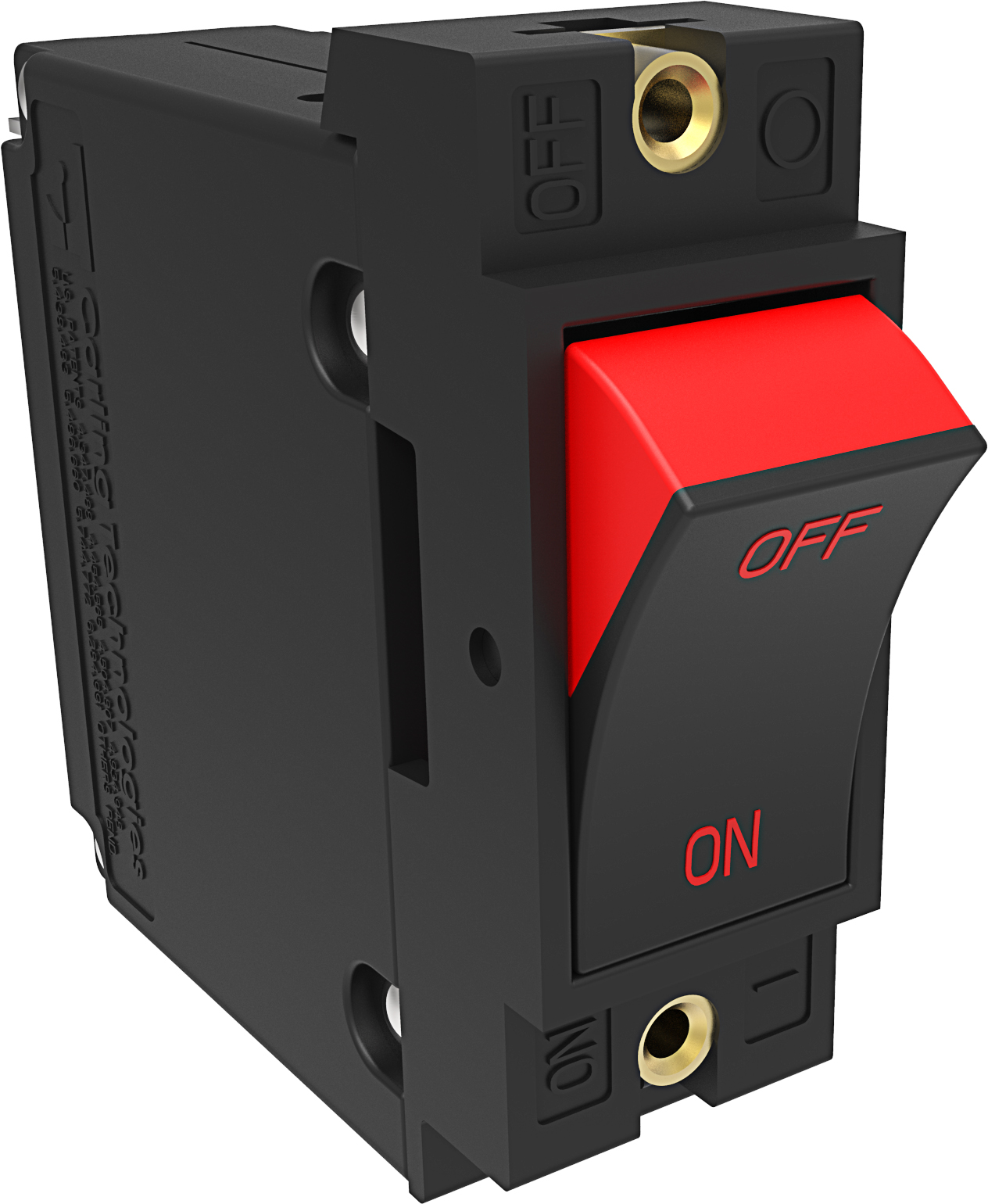

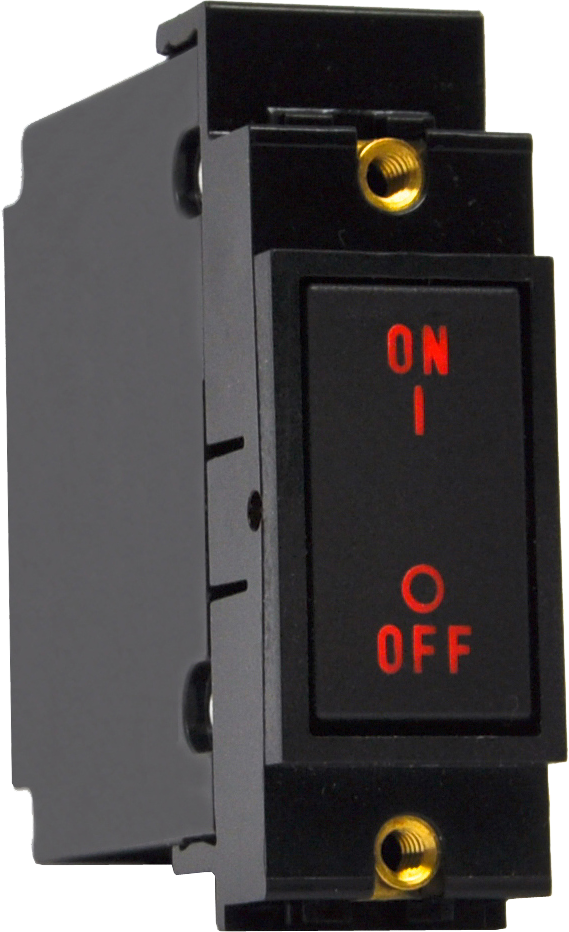

Well known for their proven reliability, Carling Technologies' A-Series hydraulic magnetic circuit breakers are compact, temperature stable and designed for precision operation in OEM markets requiring general purpose as well as full load amp applications. When front panel operation and aesthetics demand a clean, contemporary design, the visi-rocker or paddle actuators are ideally suitable. A sealed toggle actuator style is also available and ideal for harsh environment applications requiring additional sealing protection. Optional rocker-guard and push-to-reset bezels, which help prevent inadvertent actuation, are also available.
a series (3847.972 Kb)
