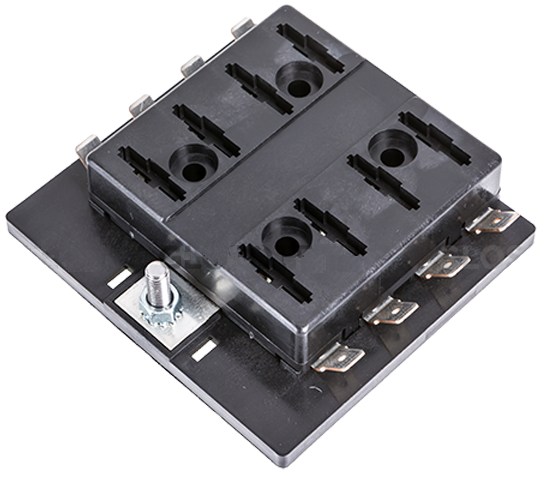

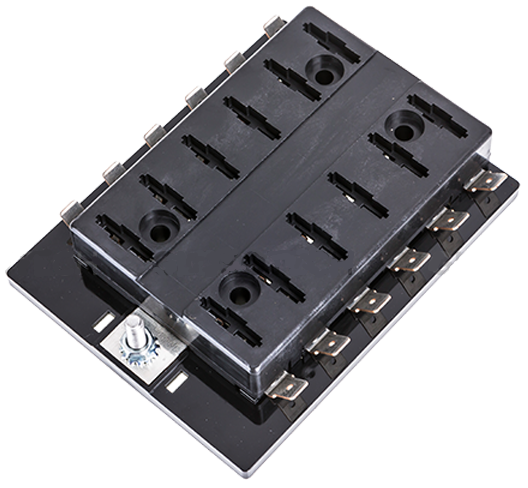

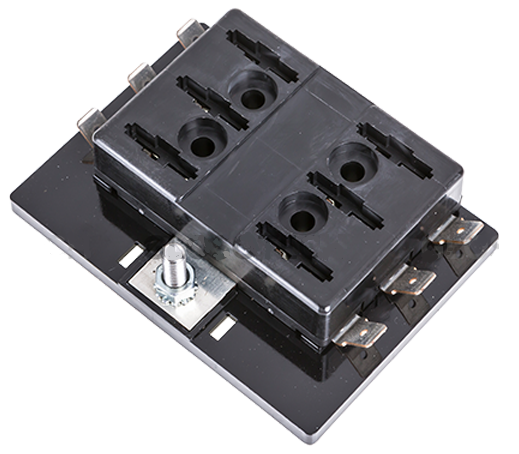

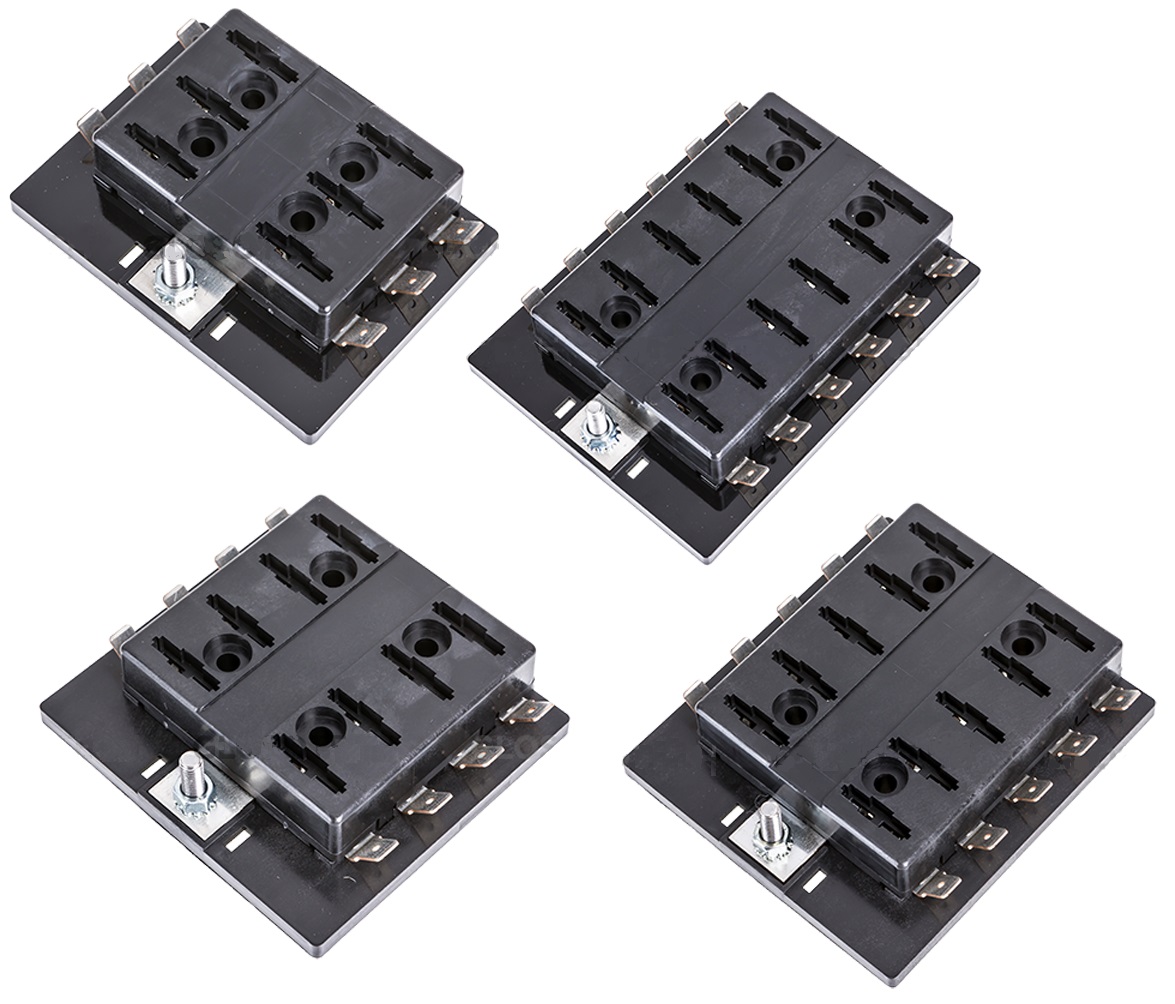

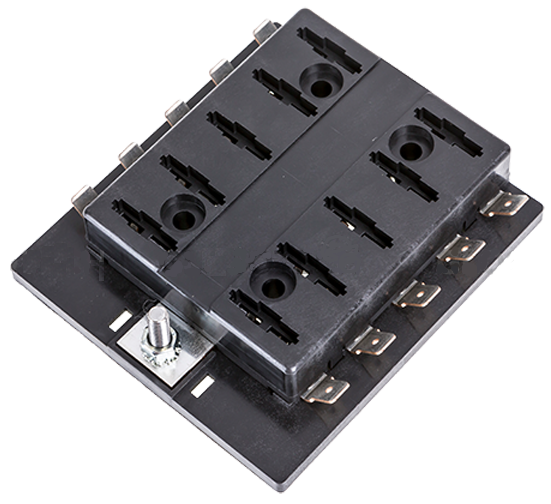

ATCFB-Series
|
Fuse Blocks |
|
|
Series |
ATCFB |
|
Number of positions |
6, 8, 10, 12 |
|
Mounting |
Torque Rating 8 in-lbs (0.9NM) max |
|
Operating Temperature |
–20°F (0°C) to 150°F (65°C) |
|
Dimension |
62.74 x 85.59 (6 positions fuce block) 78.49 x 85.59 (8 positions fuce block) 95.25 x 85.59 (10 positions fuce block) 110.24 x 85.59 (12 positions fuce block) |
|
Input |
#10-32 Threaded studs (100A Max) |
|
Output |
30A Max per circuit |
|
Termination |
0.250" x 0.032" quick-connect terminals |
|
Body Color |
Black, UL rated 94V0 Thermoplastic |
