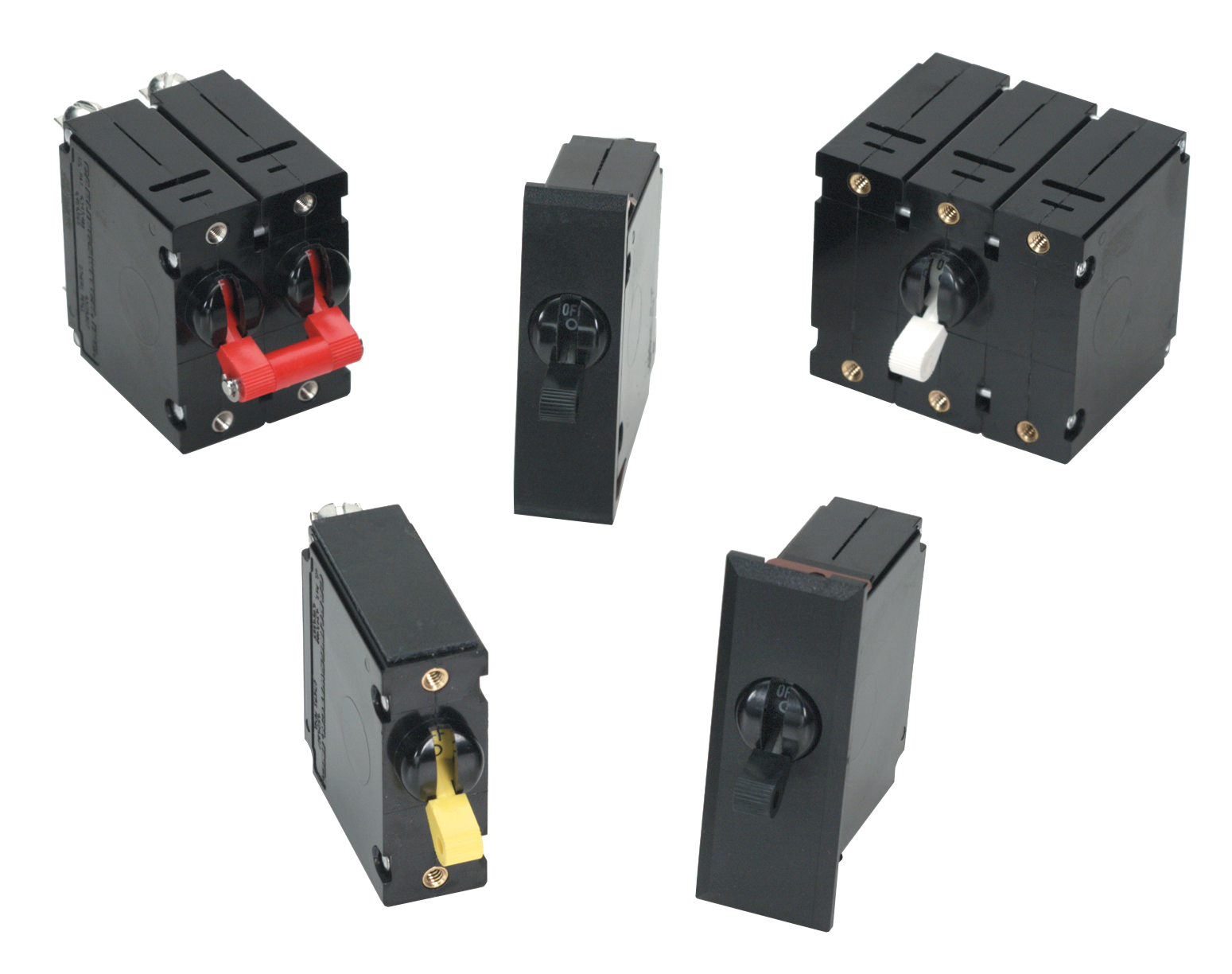

B-Series
Compact, hydraulic magnetic circuit breaker, ideal for full load amp applications. Meets regulatory spacing requirement. 1-6 poles; ratings from 0.02 to 50 amps, up to 277VAC or 80VDC; UL Recognized, UL Listed, UL1500, UL1077, TUV, VDE, CSA. Various actuator styles.
Product Type
B
- Power Supplies
- Medical Equipment
- Generator & Welder Markets
- Office Equipment
- Control Panels
- Marine
- Military
Carling Technologies' B-Series hydraulic magnetic circuit breakers are specifically designed for applications requiring extra insulation and tongue and groove half-shell constructions. The B-Series carries global regulatory safety approvals for spacing requirements and are ideal for use as general purpose as well as full load amp applications. Available with various choices of time delays, terminals, actuator styles, with a wide range of standard colors and imprinting.
b series (3008.708 Kb)
