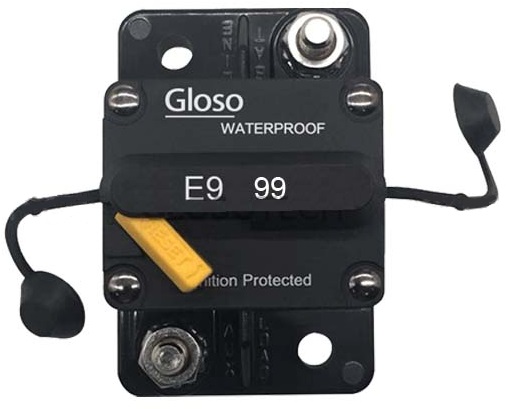

E98-Series

Product Type
E98
Suitable for
  • Buses
  • Trucks
  • Construction vehicles
  • Commercial vehicles
  • Agricultural and Forestry vehicles
  • Military and Special vehicles
  • Ships and Yachts
Application
  • Main Battery Disconnetor

Product Type

Battery Disconnect Switches

Series

E98

Voltage

48VDC (72VDC)

Current Ratings

25A…150A (180A)

Mounting

Surface Mount

Reset Type

T3, Manual Reset

Operating Temperature

-32°C (-25°F) to 82°C (180°F)

Interrupt Capacity

2,500A @ 14VDC
1,500A @ 48VDC
* Consult Factory

Dimension

Length: 74
Width: 48.2
Height: 36.7
Unit: mm

Weight

90 g

RoHS

Yes

Compliances

Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11; UL 1077*
Ignition Protected: SAE J1171; UL 1500*
Endurance: SAE J1625; SAE J553
Dielectric Strength: UL 1077*
Dust and Waterproof: IP67
Shock, Vibration, Corrosion, Humidity: Mil-STD-202

Termination

1/4" Stainless Steel Studs

Body

UL-rated 94V0 thermoset plastic

Storage Temperature

-34°C (-30°F) to 149°C (300°F)

Body Color

Black

Cover Color

Black
