C1005B-Series

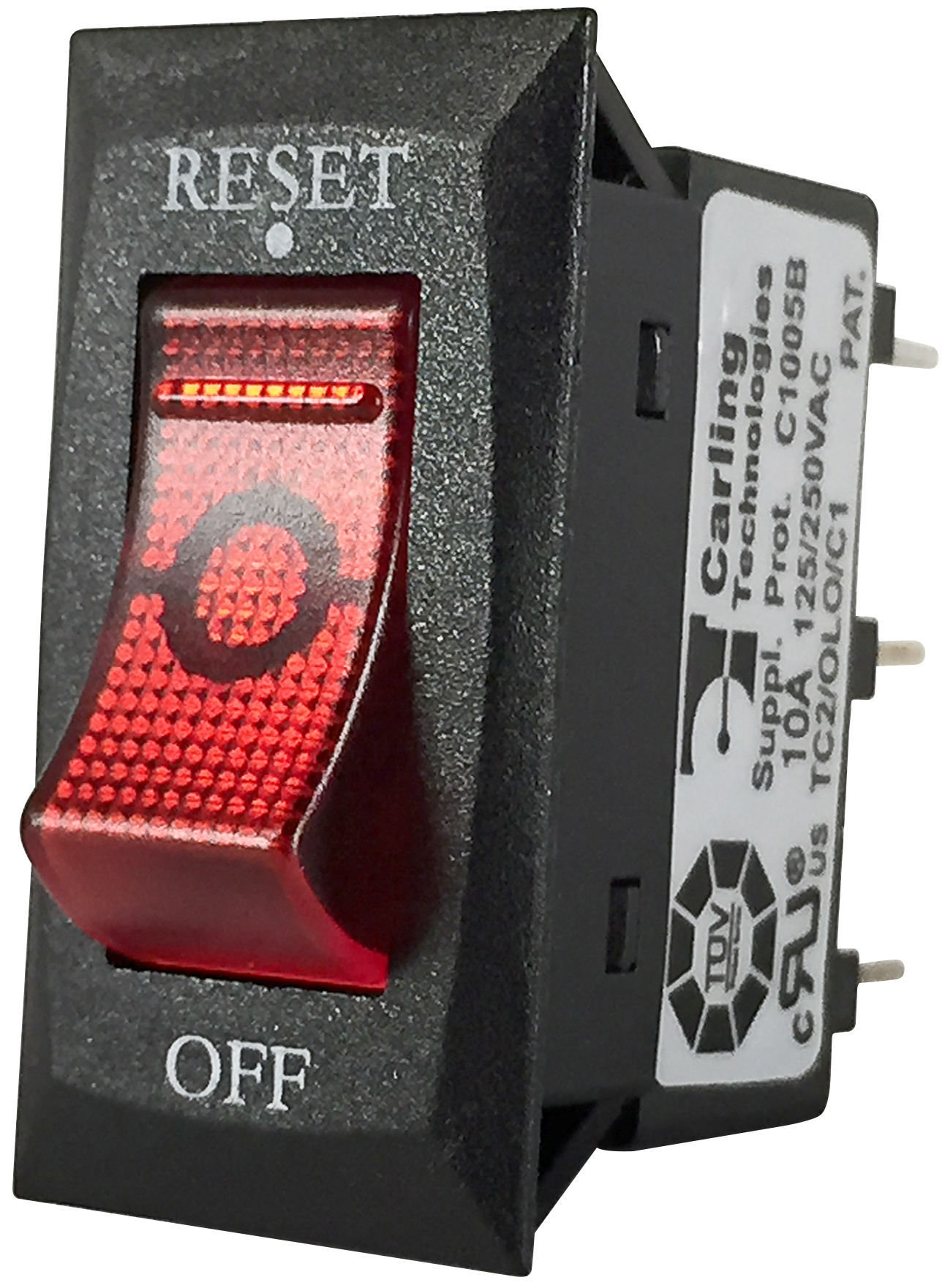

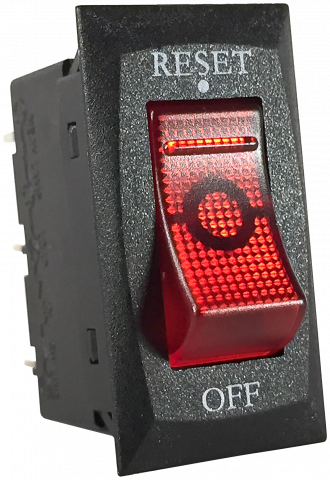

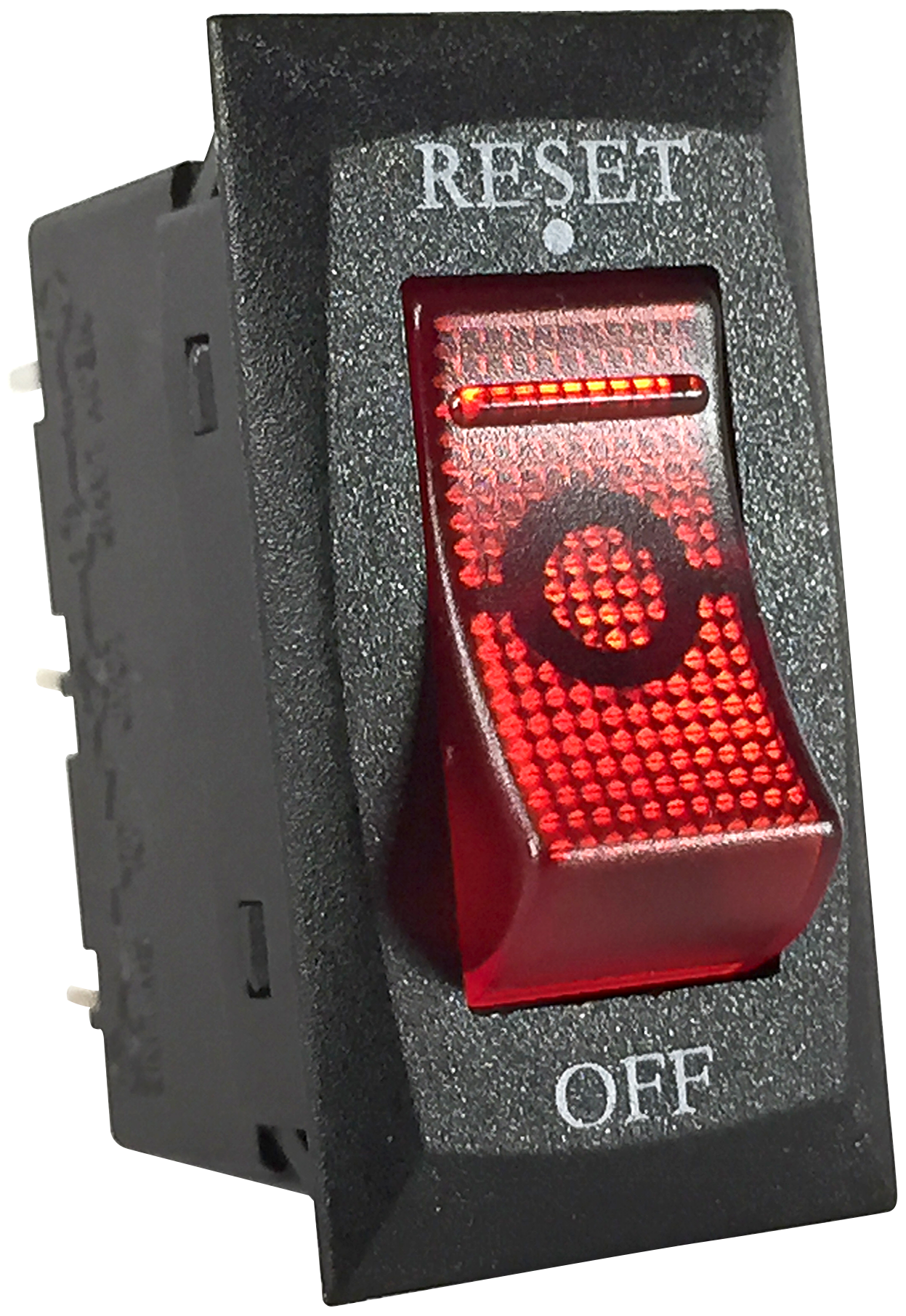

Circuit protector and switch in compact design. Single pole, 7 - 16 amps @ 125 - 250VAC, 32VDC. Illuminated rocker actuator.
- Household and Commercial Appliances
- Transportation
- Marine
- Telecommunications
- Power Strips
- Audio-Visual Equipment
- Medical Equipment
- Power Supplies
- Generators
Designed for industry standard .550 x 1.125 mounting hole, the C1005B-Series is a switch and a circuit protector in one small, compact package. This combination device eliminates the need for both a switch and thermal circuit protector on customer panels. By using only this multipurpose product, wiring and assembly costs are greatly reduced, while at the same time saving valuable panel real estate. This series is ideally suited for such applications as household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, power supplies, and exercise equipment.
