D-Series
DIN Rail Mount Hydraulic magnetic circuit breaker. 1-4 poles; ratings from 0.02 to 50 amps, up to 480VAC or 65VDC; UL Recognized, CSA, VDE
Product Type
D
- Industrial Controls
- Renewable Energy Systems

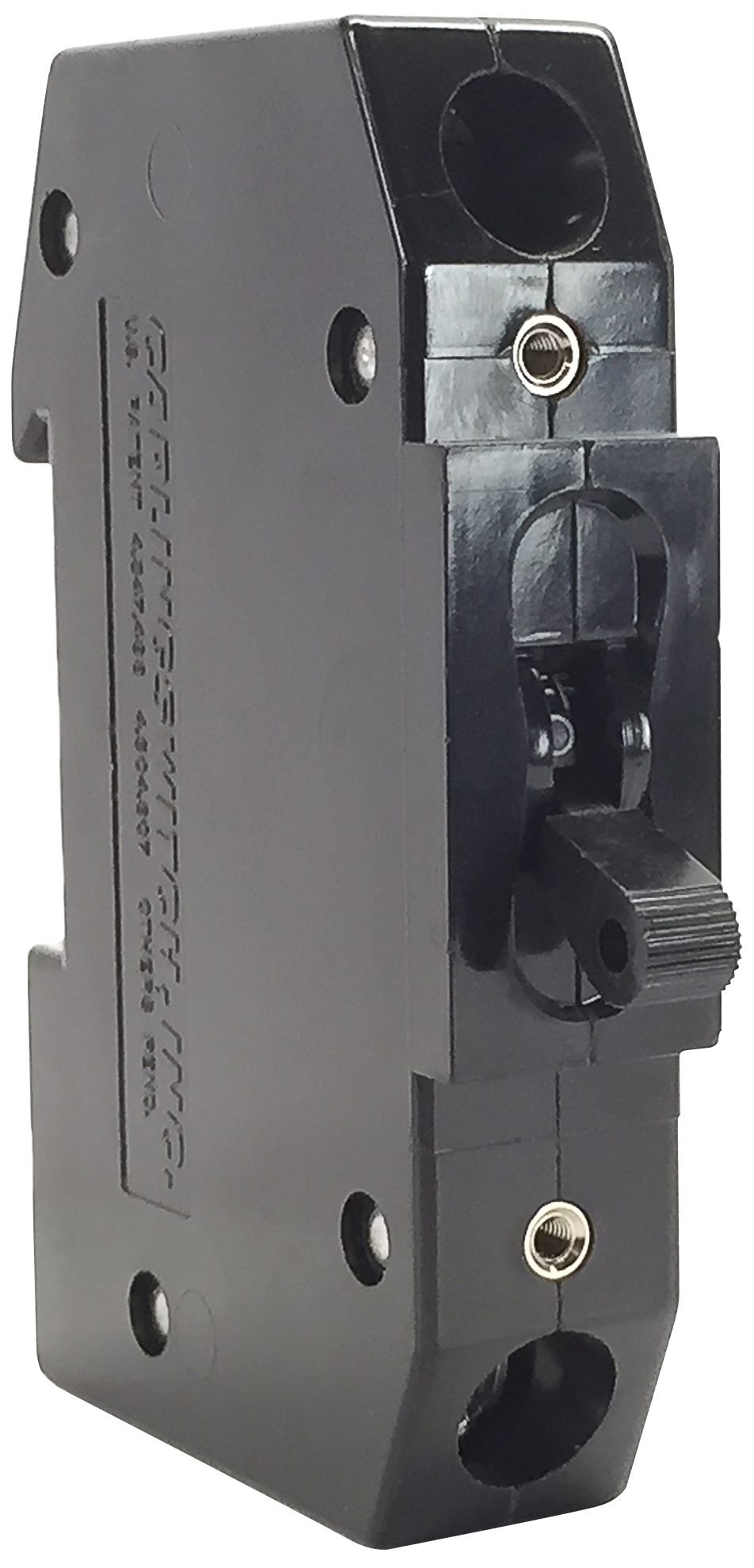

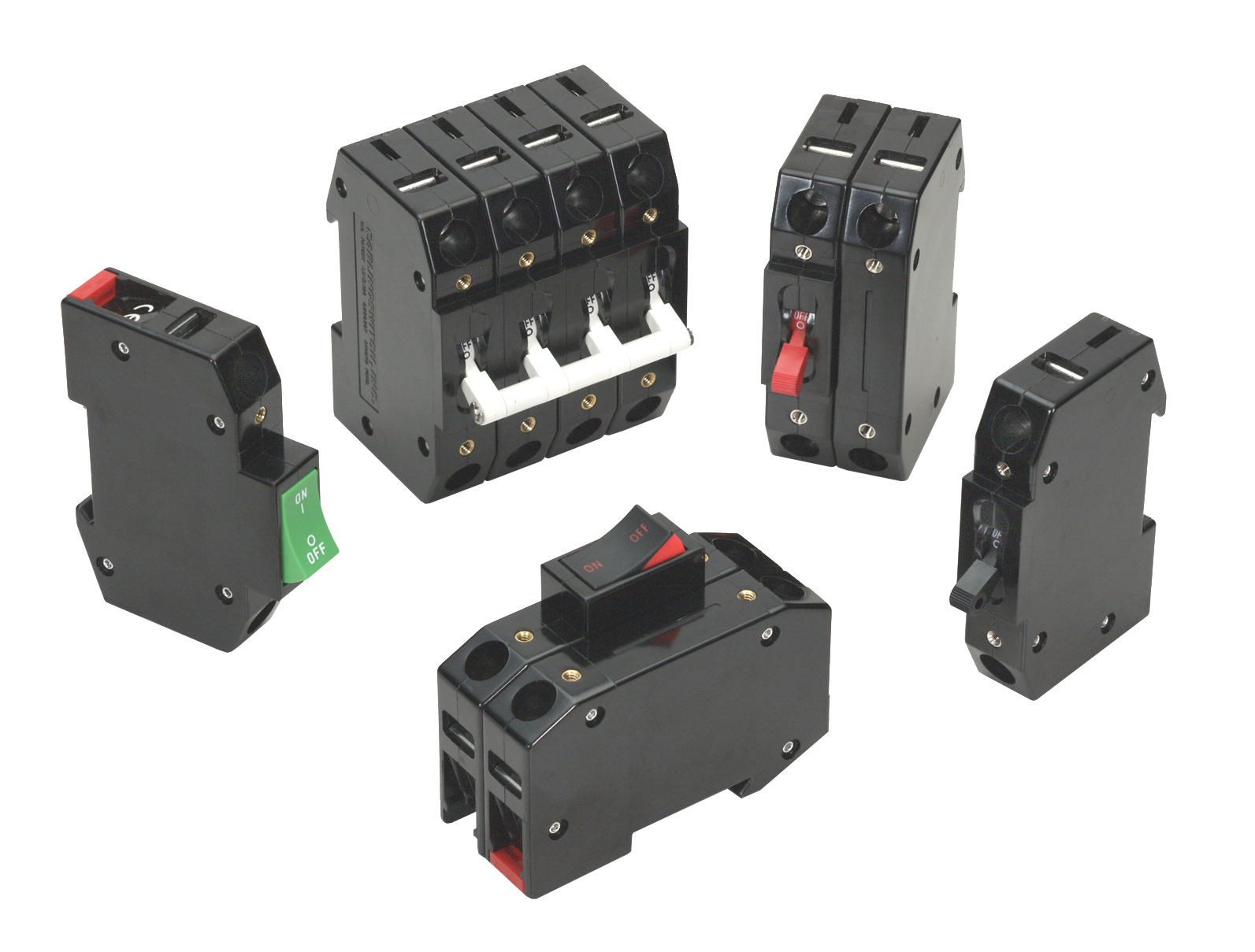

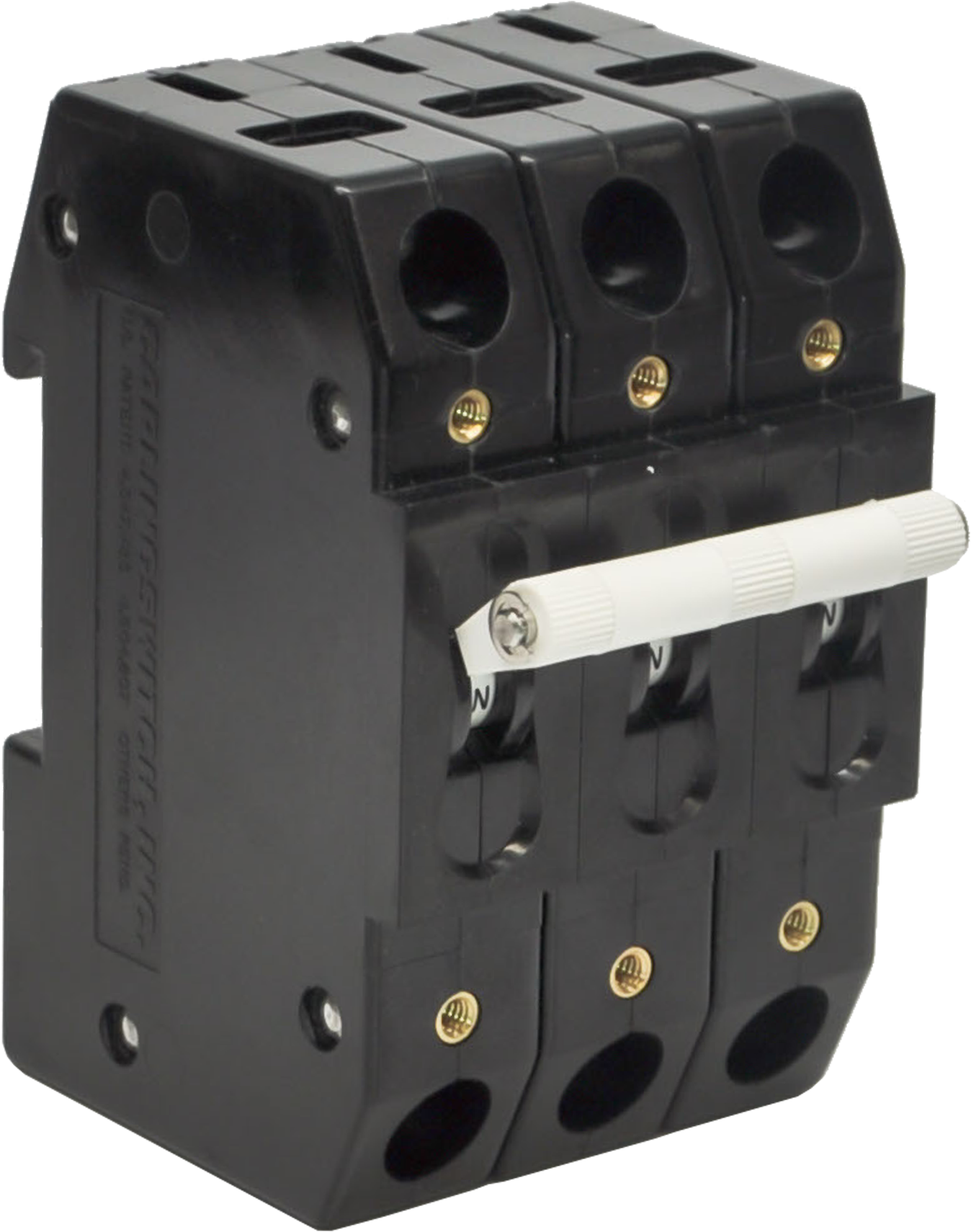

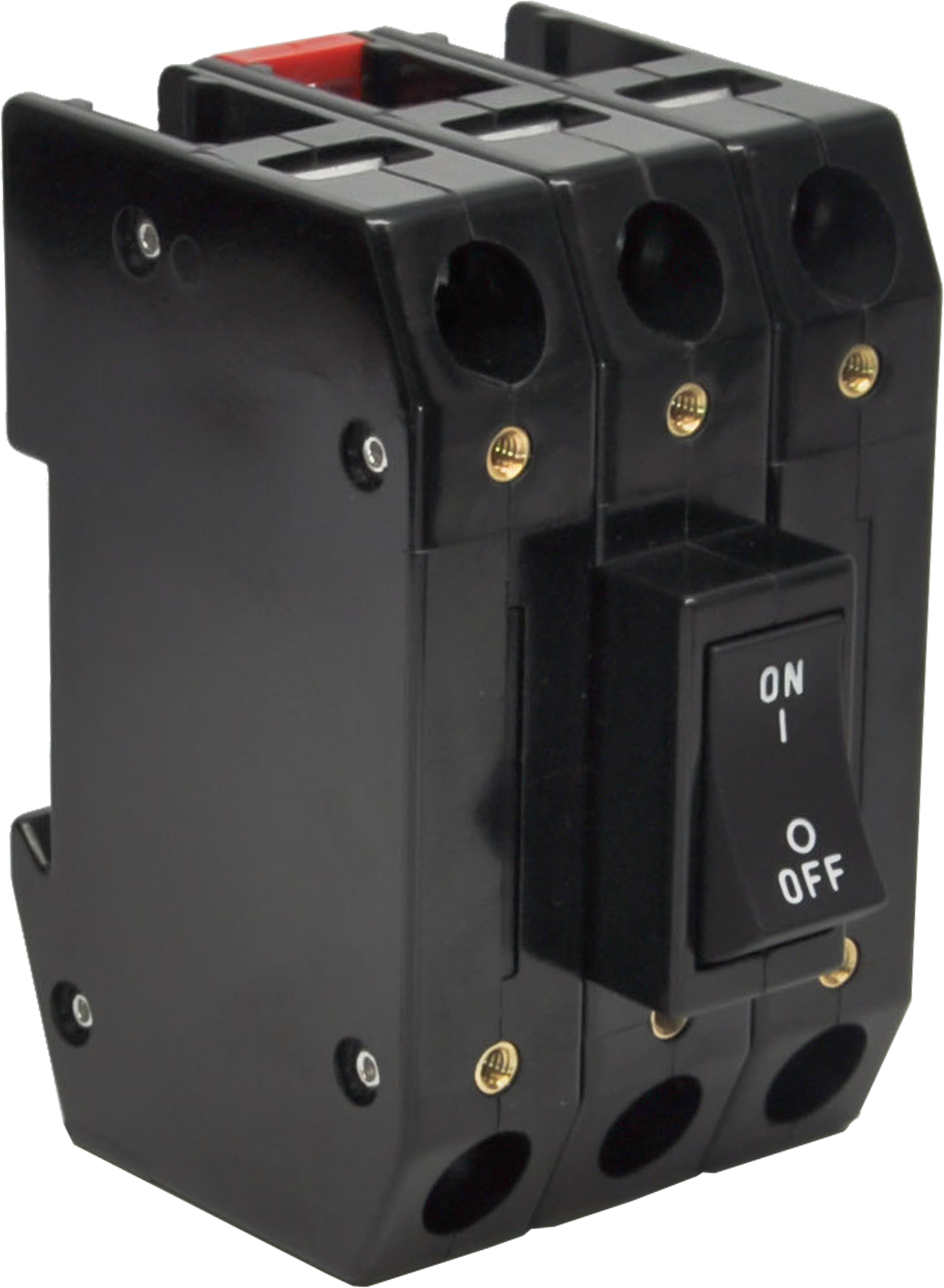

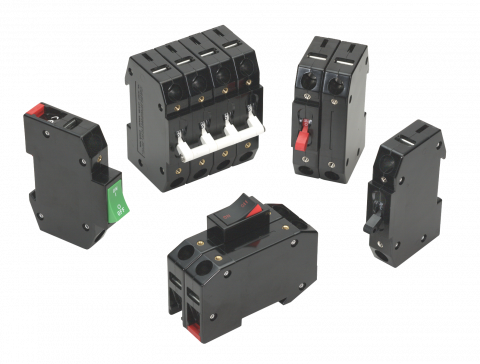

Carling Technologies' D-Series hydraulic magnetic circuit breakers are similar to the C-Series circuit breakers, but designed for snap-on-back panel rail mounting on either a 35mm X 7.5mm, or a 35mm x 15mm Symmetrical Din Rail. This design allows rapid and simple mounting and removal of the breaker. It features recessed, wire-ready, touch-proof, shock resistant terminals, suitable for automatic screwdriver assembly, as well as "Dead Front" construction characteristics. Available with several actuator styles including the exclusive Visi-Rocker two color actuator.
d series (1490.054 Kb)
