E39-Series

ATC Circuit Protector (Breaker) (Low Profile)
5A….40A, 28VDC / 32VDC
T3, Manual Reset
Compatible with ATC fuse blocks
Complies with SAE J553 and SAE J1171 for ignition protection
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Suitable for
  • Cars
  • Buses, Minibuses
  • Trolleybuses
  • Rail vehicles
  • SUV
  • Trucks
  • Construction vehicles
  • Commercial vehicles
  • Agricultural, Forestry and Garden vehicles
  • Defence and Special vehicles
  • Forklifts
  • Off-road vehicles
  • Golf buggies
  • Ships and Yachts
Applications
  • 12VDC/24VDC sockets
  • Cigarette sockets
  • USB chargers
  • Truck cable socket
  • Window defrosters
  • Windscreen wiper motors
  • Compressor of air condition
  • Fog lamps
  • Dipped beam, Low-beam lights
  • Seat position cotrol (driver, passengers)
  • Seat heating systems
  • Window lift motor
  • Exterior lights
  • Pumps (oil, fuel…)
  • etc.

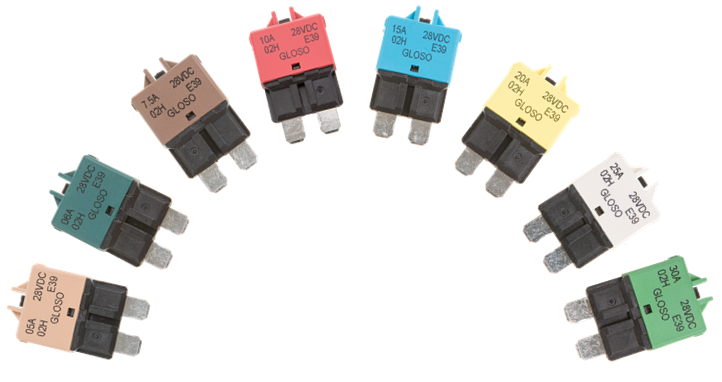

Automotive circuit protectors E39 may serve as alternative to standard automotive fuses in applications involving operational risks such as short-therm overloading. E39 series is available with manulal reset function and 2 versions of tripping characteristics. The circuit breaker current rating is printed on the cover and also shown in the cover colour code. .

Product Type

Automotive Circuit Protectors

Series

E39

Voltage

28VDC / 32VDC

Current Rating

5…40A

Reset Type

T3, Manual Reset

Operating Temperature

-40°C (-40°F) to 85°C (185°F)

Interrupt Capacity

2,000 Amp @ 28VDC

Dimension

Length: 19.7
Width: 6.2
Height: 29.5
Unit: mm

Weight

5 g

RoHS

RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Compliances

SAEJ 553; SAEJ 1171 (Ignition Protected); UL1500

Termination

5.2 mm wide blades (ATC Type)

Storage Temperature

-40°C (-40°F) to 125°C (260°F)
