E73-Series

E72 Mini Circuit Protector (Breaker)
5A….30A, 24VDC (28VDC)
T2, Manual Reset
Compatible with 280 Type fuse blocks (Mini Type)
Complies with SAE J553
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Suitable for

Cars
Buses, Minibuses
Trolleybuses
Rail vehicles
SUV
Trucks
Construction vehicles
Commercial vehicles
Agricultural, Forestry and Garden vehicles
Military and Special vehicles
Forklifts
Off-road vehicles
Golf buggies
Ships and Yachts

Applications

12VDC/24VDC sockets
Cigarette sockets
USB chargers
Truck cable socket
Window defrosters
Windscreen wiper motors
Compressor of air condition
Fog lamps
Dipped beam, Low-beam lights
Seat position cotrol (driver, passengers)
Seat heating systems
Window lift motor
Exterior lights
Pumps (oil, fuel…)
etc.

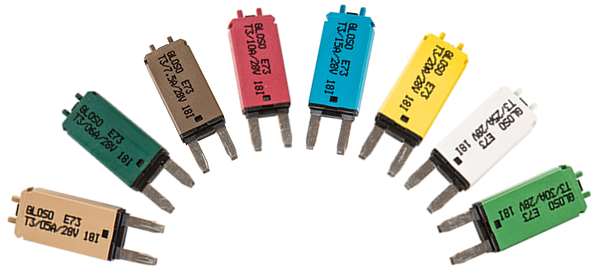

Automotive circuit protectors E72 may serve as alternative to standard automotive fuses in applications involving operational risks such as short-therm overloading. E72 series is available with modified reset function and 2 versions of tripping characteristics. The circuit breaker current rating is printed on the cover and also shown in the cover colour code.

Product Type	Automotive Circuit Protectors
Series	E73
Voltage	24VDC (28VDC)
Current Ratings	5…30A
Reset Type	T3, Manual Reset
Operating Temperature	-40°C (-40°F) to 85°C (185°F)
Absolute breaking capacity Interrupt capacity	2,000 Amp @ 26VDC 150A @ 14VDC (for 5A – 10A) 225A @ 14VDC (for 15A) 300A @ 14VDC (for 20A) 450A @ 14VDC (for 25A, 30A)
Dimension	Length: 12.4 Width: 6.4 Height: 26 Unit: mm
Weight	4 g
RoHS	RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863
Compliance	SAE J553
Termination	2.8 mm wide blades (Mini Type)
Storage Temperature	-40°C (-40°F) to 125°C (260°F)
