E73L-Series

E73L Mini Circuit Protector (Breaker)
5A….30A, 12VDC (14VDC)
T3, Manual Reset
Compatible with 280 Type fuse blocks (Mini Type) with barriers
Complies with SAE J553
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Suitable for
  • Cars
  • Buses, Minibuses
  • Trolleybuses
  • Rail vehicles
  • SUV
  • Trucks
  • Construction vehicles
  • Commercial vehicles
  • Agricultural, Forestry and Garden vehicles
  • Military and Special vehicles
  • Forklifts
  • Off-road vehicles
  • Golf buggies
  • Ships and Yachts
Applications
  • 12VDC/24VDC sockets
  • Cigarette sockets
  • USB chargers
  • Truck cable socket
  • Window defrosters
  • Windscreen wiper motors
  • Compressor of air condition
  • Fog lamps
  • Dipped beam, Low-beam lights
  • Seat position cotrol (driver, passengers)
  • Seat heating systems
  • Window lift motor
  • Exterior lights
  • Pumps (oil, fuel…)
  • etc.

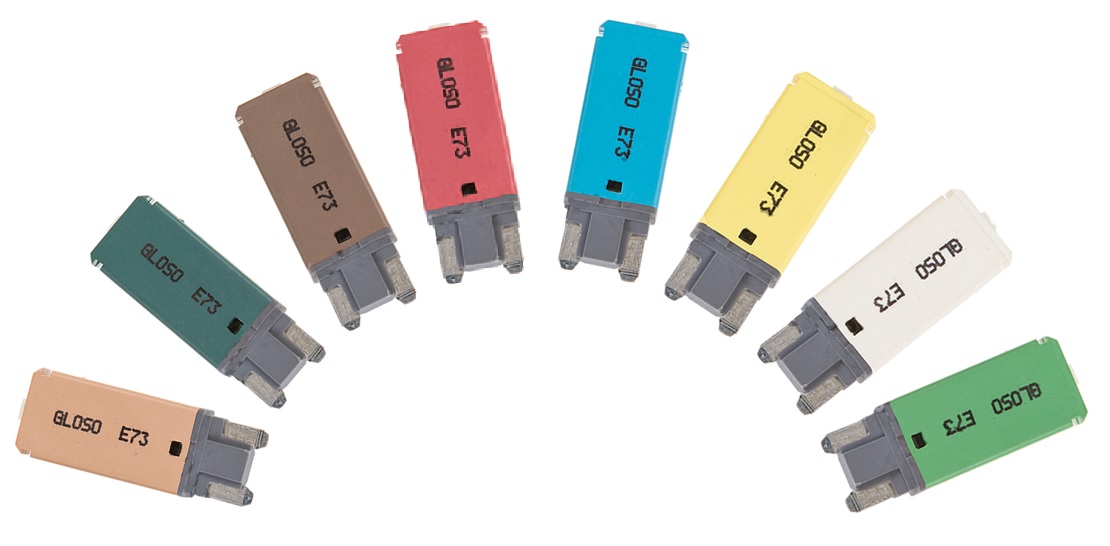

Automotive circuit protectors E73L may serve as alternative to standard automotive fuses in applications involving operational risks such as short-therm overloading. E73L series is available with manual reset function and 2 versions of tripping characteristics. The circuit breaker current rating is printed on the cover and also shown in the cover colour code.

Product Type

Automotive Circuit Protectors

Series

E73L

Voltage

12VDC (14VDC)

Current Ratings

5…30A

Reset Type

T3, Manual Reset

Operating Temperature

-40°C (-40°F) to 85°C (185°F)

Absolute breaking capacity

Interrupt capacity

2,000 Amp @ 26VDC

150A @ 14VDC (for 5A – 10A)

225A @ 14VDC (for 15A)

300A @ 14VDC (for 20A)

450A @ 14VDC (for 25A, 30A)

Dimension

Length: 12.4

Width: 6.4

Height: 26

Unit: mm

Weight

4 g

RoHS

RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Compliance

SAE J553

Termination

2.8 mm wide blades (Mini Type) with barriers between terminals

Storage Temperature

-40°C (-40°F) to 125°C (260°F)
