E77-Series

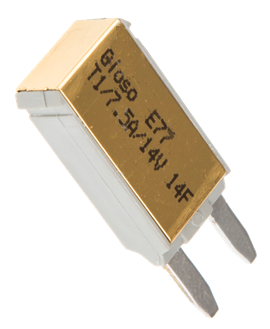

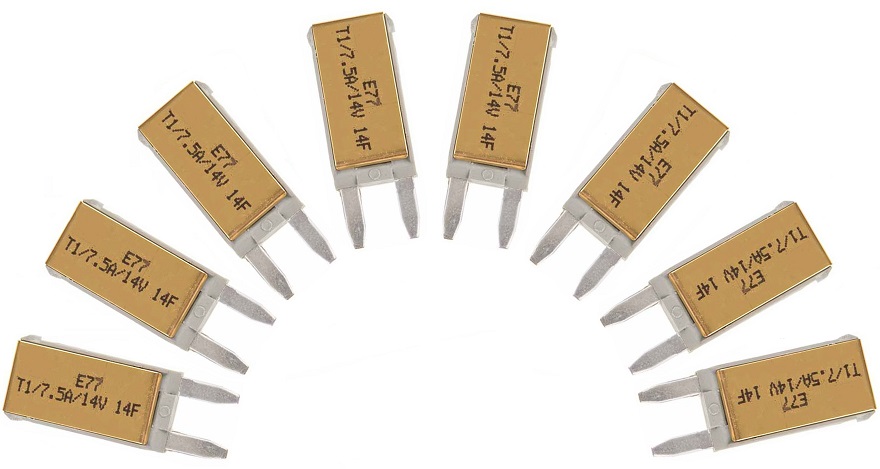

E77 Mini Circuit Protector (Breaker)
5A….30A, 12VDC (14VDC)
T1, Auto Reset
Compatible with 280 Type fuse blocks (Mini Type)
Complies with SAE J553
Aluminium cover
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Suitable for
  • Cars
  • Buses, Minibuses
  • Trolleybuses
  • Rail vehicles
  • SUV
  • Trucks
  • Construction vehicles
  • Commercial vehicles
  • Agricultural, Forestry and Garden vehicles
  • Military and Special vehicles
  • Forklifts
  • Off-road vehicles
  • Golf buggies
  • Ships and Yachts
Applications
  • 12VDC/24VDC sockets
  • Cigarette sockets
  • USB chargers
  • Truck cable socket
  • Window defrosters
  • Windscreen wiper motors
  • Compressor of air condition
  • Fog lamps
  • Dipped beam, Low-beam lights
  • Seat position cotrol (driver, passengers)
  • Seat heating systems
  • Window lift motor
  • Exterior lights
  • Pumps (oil, fuel…)
  • etc.

Automotive circuit protectors E77 may serve as alternative to standard automotive fuses in applications involving operational risks such as short-therm overloading. E77 series is available with auto reset function , 2 versions of tripping characteristics and aluminium cover. The circuit breaker current rating is printed on the cover.

Product Type

Automotive Circuit Protectors

Series

E77

Voltage

12VDC (14VDC)

Current Ratings

5…30A

Current ratings

T1, Auto Reset

Operating Temperature

-40°C (-40°F) to 85°C (185°F)

Absolute breaking capacity

Interrupt capacity

2000 A @ 26VDC

150A @ 14VDC (for 5A – 10A)

225A @ 14VDC (for 15A)

300A @ 14VDC (for 20A)

450A @ 14VDC (for 25A, 30A)

Dimension

Length: 12.4

Width: 6.4

Height: 26

Unit: mm

Weight

4 g

RoHS

RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Compliance

SAE J553

Termination

2.8 mm wide blades (Mini Type)

Storage Temperature

-40°C (-40°F) to 125°C (260°F)
