E78-Series

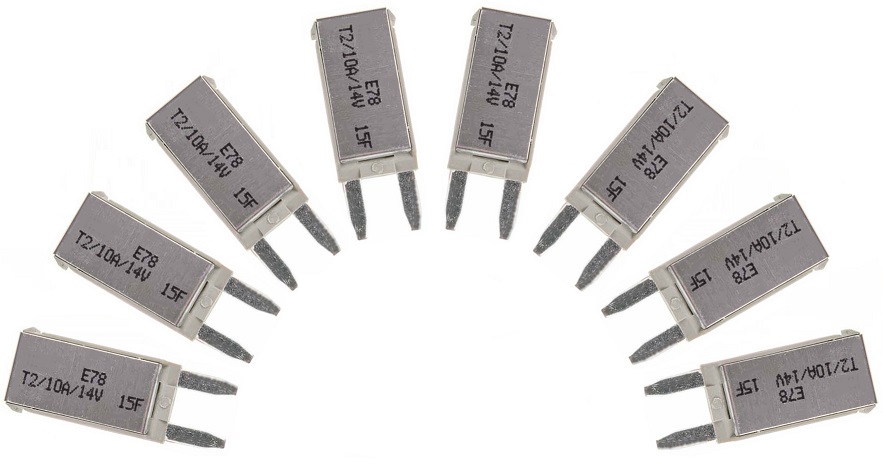

E78 Mini Circuit Protector (Breaker)
5A….30A, 12VDC (14VDC)
T2, Modified Reset
Compatible with 280 Type fuse blocks (Mini Type)
Complies with SAE J553
Aluminium cover
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863
- Cars
- Buses, Minibuses
- Trolleybuses
- Rail vehicles
- SUV
- Trucks
- Construction vehicles
- Commercial vehicles
- Agricultural, Forestry and Garden vehicles
- Military and Special vehicles
- Forklifts
- Off-road vehicles
- Golf buggies
- Ships and Yachts
- 12VDC/24VDC sockets
- Cigarette sockets
- USB chargers
- Truck cable socket
- Window defrosters
- Windscreen wiper motors
- Compressor of air condition
- Fog lamps
- Dipped beam, Low-beam lights
- Seat position cotrol (driver, passengers)
- Seat heating systems
- Window lift motor
- Exterior lights
- Pumps (oil, fuel…)
- etc.
Automotive circuit protectors E78 may serve as alternative to standard automotive fuses in applications involving operational risks such as short-therm overloading. E78 series is available with modified reset function, 2 versions of tripping characteristics and aluminium cover. The circuit breaker current rating is printed on the cover and also shown in the cover colour code.
Product Type |
|
Series |
E78 |
Voltage |
12VDC (14VDC) |
Current Ratings |
5…30A |
Reset Type |
T2, Modified Reset |
Operating Temperature |
-40°C (-40°F) to 85°C (185°F) |
Absolute breaking capacity Interrupt capacity |
2000 A @ 26VDC 150A @ 14VDC (for 5A – 10A) 225A @ 14VDC (for 15A) 300A @ 14VDC (for 20A) 450A @ 14VDC (for 25A, 30A) |
Dimension |
Length: 12.4 Width: 6.4 Height: 26 Unit: mm |
Weight |
4 g |
RoHS |
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863 |
Compliance |
SAE J553 |
Termination |
2.8 mm wide blades (Mini Type) |
Storage Temperature |
-40°C (-40°F) to 125°C (260°F) |
