E81-Series

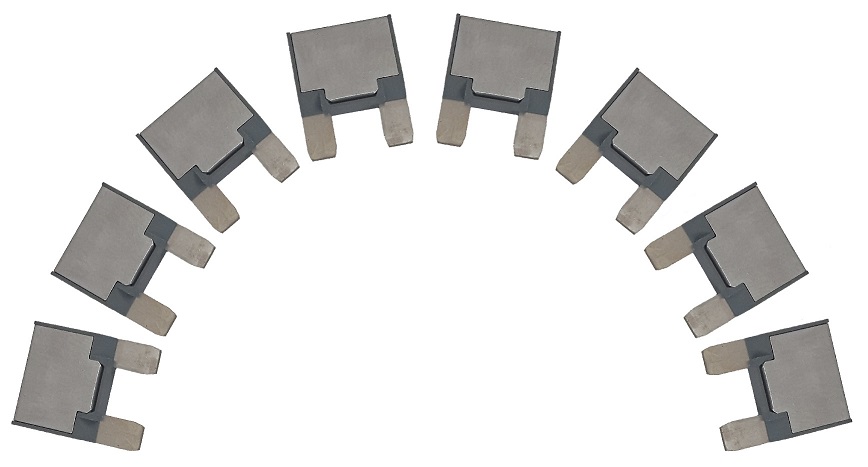

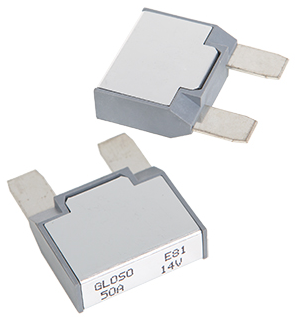

E81 MAXI Circuit Protector (Breaker)
T1, Auto Reset
5A…50A @ 12VDC (14VDC)
Compatible with fuse blocks accepting MAXI or ATC blade fuses
Complies with SAE J553
Aluminium cover
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Suitable for
  • Cars
  • Buses, Minibuses
  • Trolleybuses
  • Rail vehicles
  • SUV
  • Trucks
  • Construction vehicles
  • Commercial vehicles
  • Agricultural, Forestry and Garden vehicles
  • Military and Special vehicles
  • Forklifts
  • Off-road vehicles
  • Golf buggies
  • Ships and Yachts

Product Type

Automotive Circuit Protectors

Series

E81

Voltage

12VDC (14VDC)

Current Ratings

5A…50A

Reset Type

T1, Auto Reset

Operating Temperature

-40°C (-40°F) to 85°C (185°F)

Absolute breaking capacity

Interrupt capacity

2000 A @ 26VDC

150A @ 14VDC (for 5A – 10A)

225A @ 14VDC (for 15A)

300A @ 14VDC (for 20A)

450A @ 14VDC (for 25A, 30A)

600A @ 14VDC (for 35A, 40A)

750A @ 14VDC (for 50A)

Dimension

Length: 29.2

Width: 9.14

Height: 23.37

Unit: mm

Weight

9 g

RoHS

RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Compliance

SAE J553

Termination

Compatible with fuse blocks accepting MAXI or ATC blade fuses

Storage Temperature

-40°C (-40°F) to 125°C (260°F)
