E83-Series

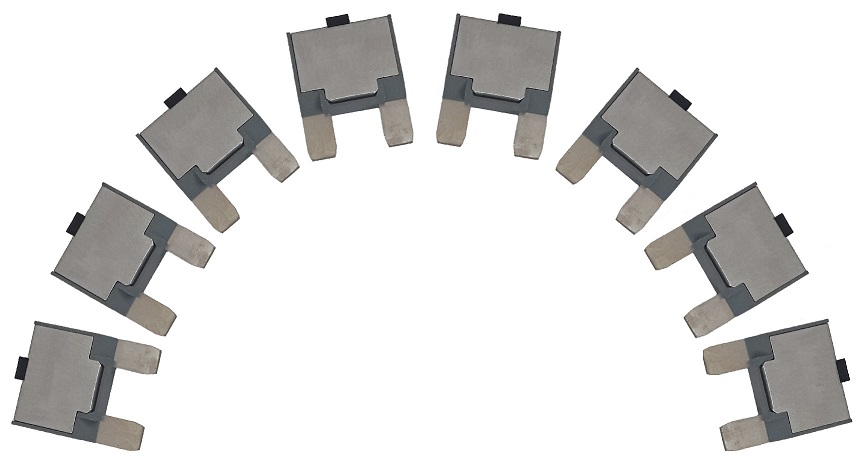

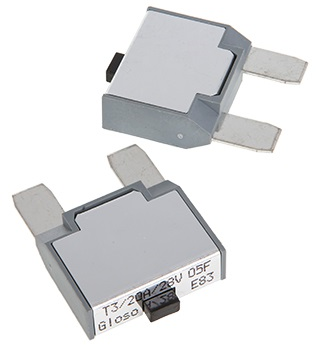

E83 MAXI Circuit Protector (Breaker)
T3, Manual Reset
5A…50A @ 24VDC (28VDC)
Compatible with fuse blocks accepting MAXI or ATC blade fuses
Complies with SAE J553
Aluminium cover
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863
- Cars
- Buses, Minibuses
- Trolleybuses
- Rail vehicles
- SUV
- Trucks
- Construction vehicles
- Commercial vehicles
- Agricultural, Forestry and Garden vehicles
- Military and Special vehicles
- Forklifts
- Off-road vehicles
- Golf buggies
- Ships and Yachts
Product Type |
|
Series |
E83 |
Voltage |
24VDC (28VDC) |
Current Ratings |
5A…50A |
Reset Type |
T3, Manual Reset |
Operating Temperature |
-40°C (-40°F) to 85°C (185°F) |
Absolute breaking capacity Interrupt capacity |
2000 A @ 26VDC 150A @ 14VDC (for 5A – 10A) 225A @ 14VDC (for 15A) 300A @ 14VDC (for 20A) 450A @ 14VDC (for 25A, 30A) 600A @ 14VDC (for 35A, 40A) 750A @ 14VDC (for 50A) |
Dimension |
Length: 29.2 Width: 9.14 Height: 23.37 Unit: mm |
Weight |
10 g |
RoHS |
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863 |
Compliance |
SAE J553 |
Termination |
Compatible with fuse blocks accepting MAXI or ATC blade fuses |
Storage Temperature |
-40°C (-40°F) to 125°C (260°F) |
