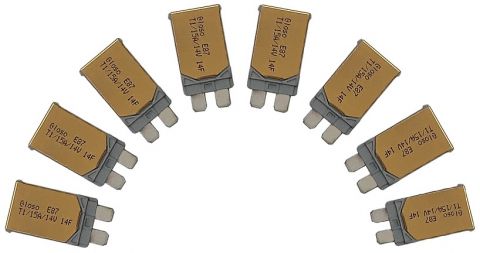

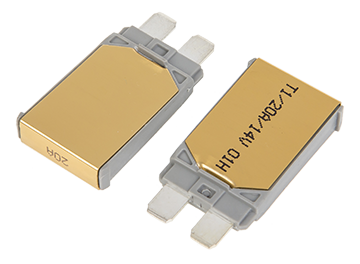

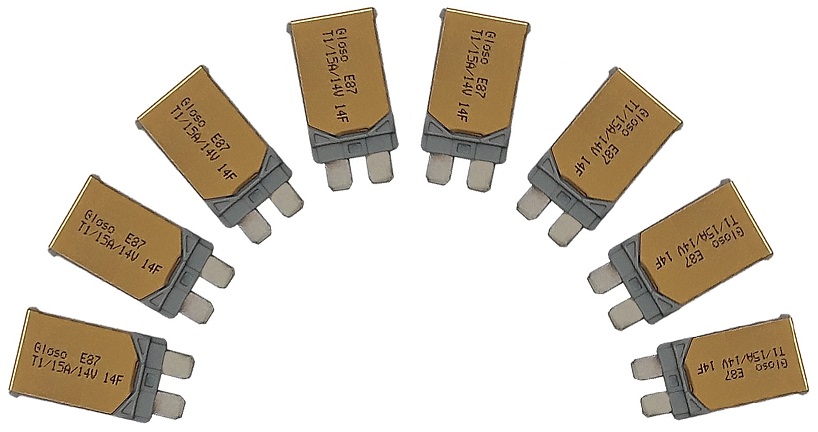

E87-Series

E87 MAXI Circuit Protector (Breaker)
T1, Auto Reset
5A…30A @ 12VDC (14VDC)
Compatible with fuse blocks accepting ATC blade fuses
Complies with SAE J553, ISO 10924
Aluminium cover
RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863

Suitable for

Cars
Buses, Minibuses
Trolleybuses
Rail vehicles
SUV
Trucks
Construction vehicles
Commercial vehicles
Agricultural, Forestry and Garden vehicles
Military and Special vehicles
Forklifts
Off-road vehicles
Golf buggies
Ships and Yachts

Product Type	Automotive Circuit Protectors
Series	E87
Voltage	14VDC
Current Ratings	5A…30A
Reset Type	T1, Auto Reset
Operating Temperature	-40°C (-40°F) to 85°C (185°F)
Absolute breaking capacity Interrupt capacity	2000 A @ 26VDC 150A @ 14VDC (for 5A – 10A) 225A @ 14VDC (for 15A) 300A @ 14VDC (for 20A) 450A @ 14VDC (for 25A, 30A)
Dimension	Length: 19 Width: 6.5 Height: 31.5 Unit: mm
Weight	7 g
RoHS	RoHS III Directive 2011/65/EU as amended by Directive (EU) 2015/863
Compliances	SAE J553, ISO 10924
Termination	Compatible with fuse blocks accepting ATC blade fuses
Storage Temperature	-40°C (-40°F) to 125°C (260°F)
