G-Series

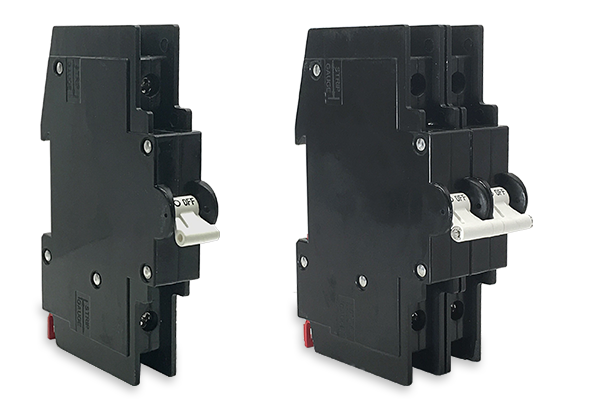

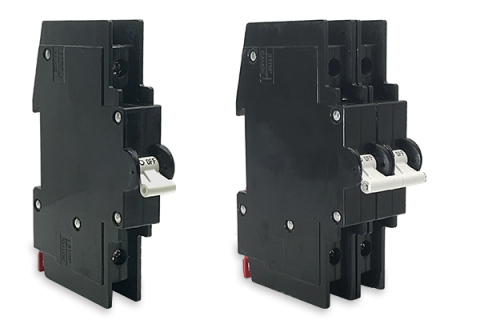

DIN Ril mounted hydraulic magnetic circuit breaker. Handle actuator 1-4 poles (4thpole for neutral break only); optional auxiliary switch; 0.02 - 63 amps, up to 480VAC or 80VDC; meets IEC spacing requirements, UL489, UL Recognized, CSA Accepted, TUV Certified.
- Transportation
- Industrial Controls
- Lighting
- Renewable Energy Systems
- Telecom
- Control Panels
Carling Technologies' G-Series hydraulic magnetic circuit breaker insures maximum protection by integrating wiping contacts for longevity; a common trip linkage between poles; a unique terminal bus connection system; and optional integrated auxiliary contacts. It is also suitable for reverse feed and provides finger safe terminals. This DIN rail mount circuit breaker accommodates either a 35mm x 7.5mm, or a 35mm x 15mm symmetrical din rails.

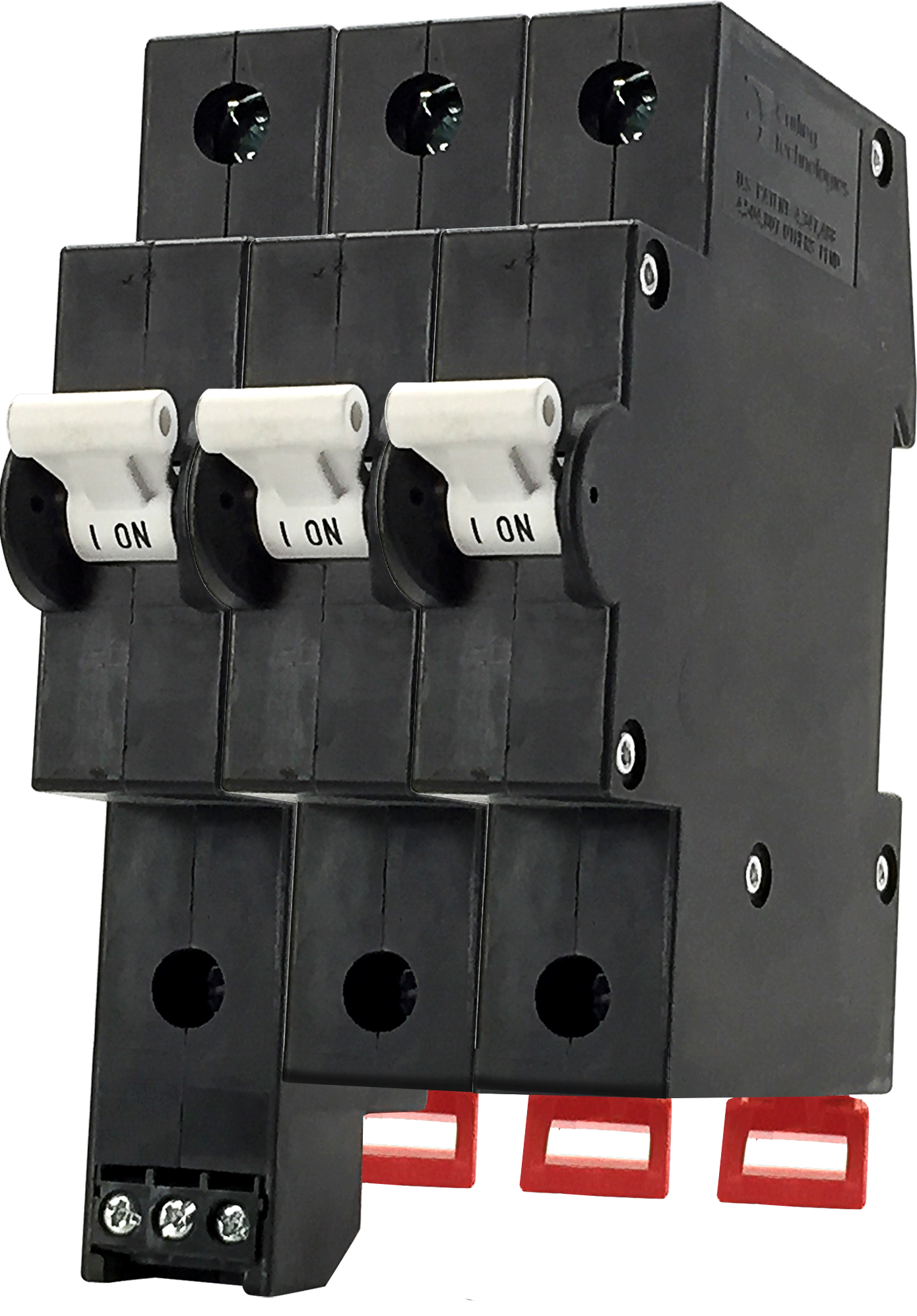

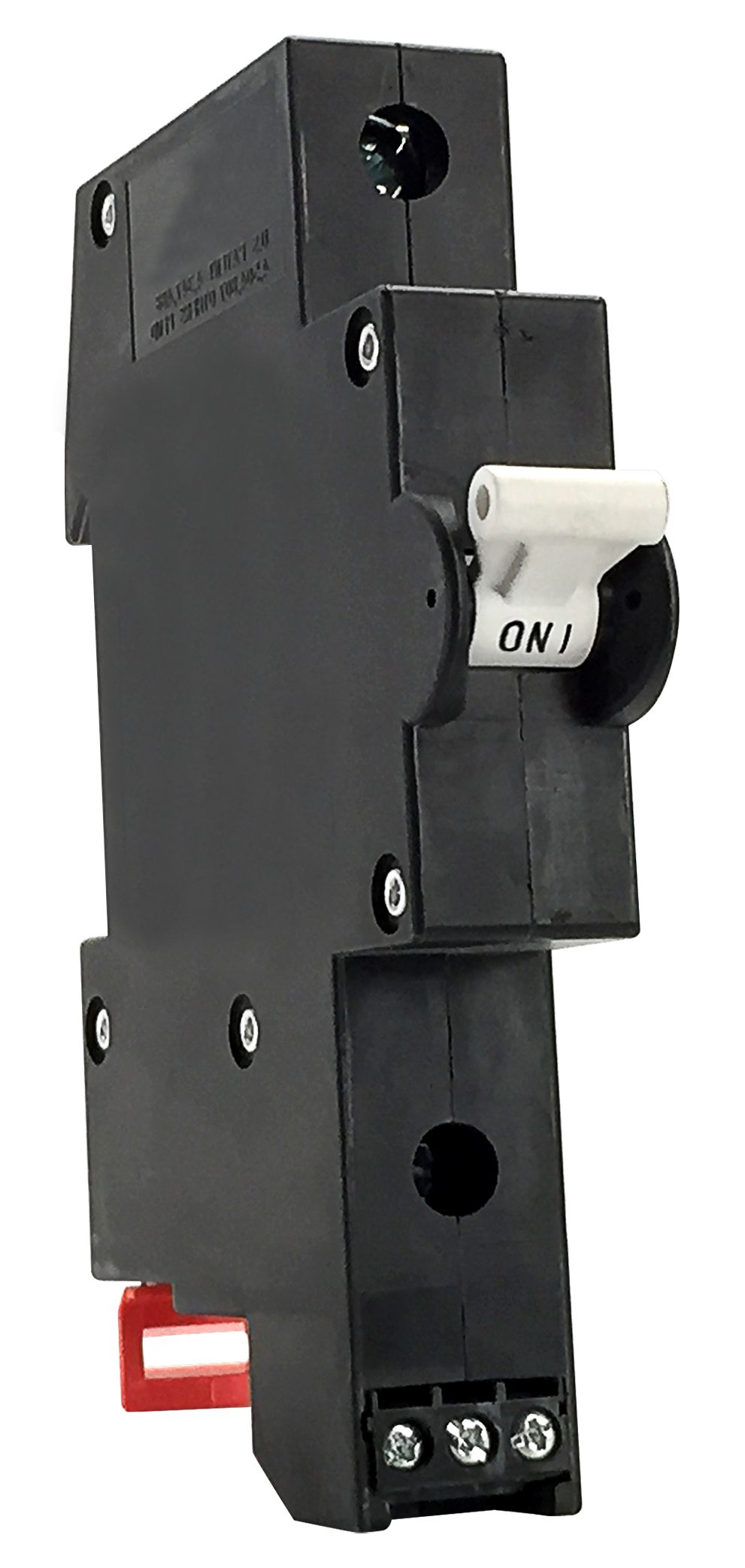

The integrated auxiliary switch option provides breaker status indication and this versatile connector is compatible with various plugs allowing for pre-wiring, easy installation and interchangeability.
g series (1411.877 Kb)
