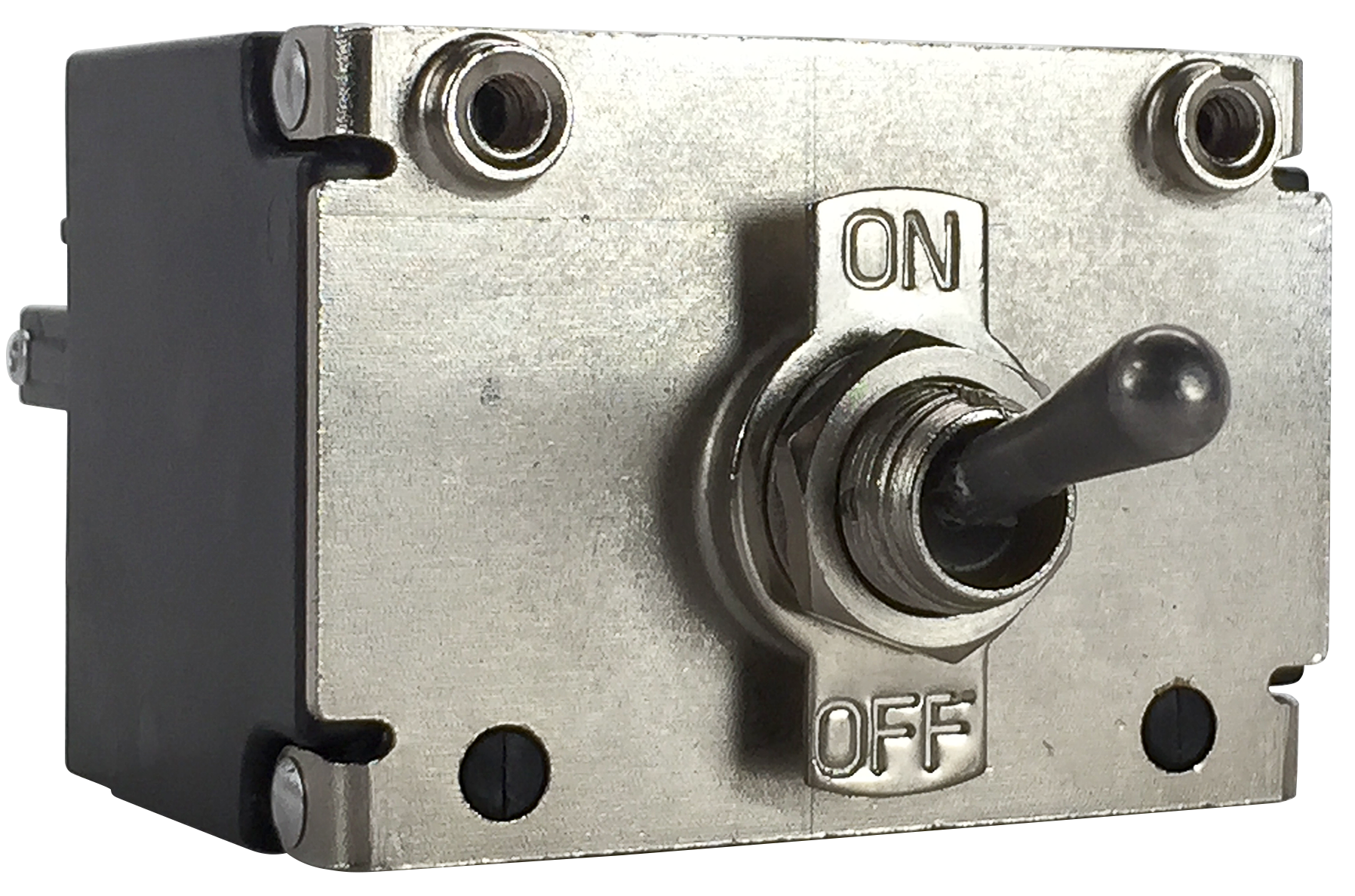

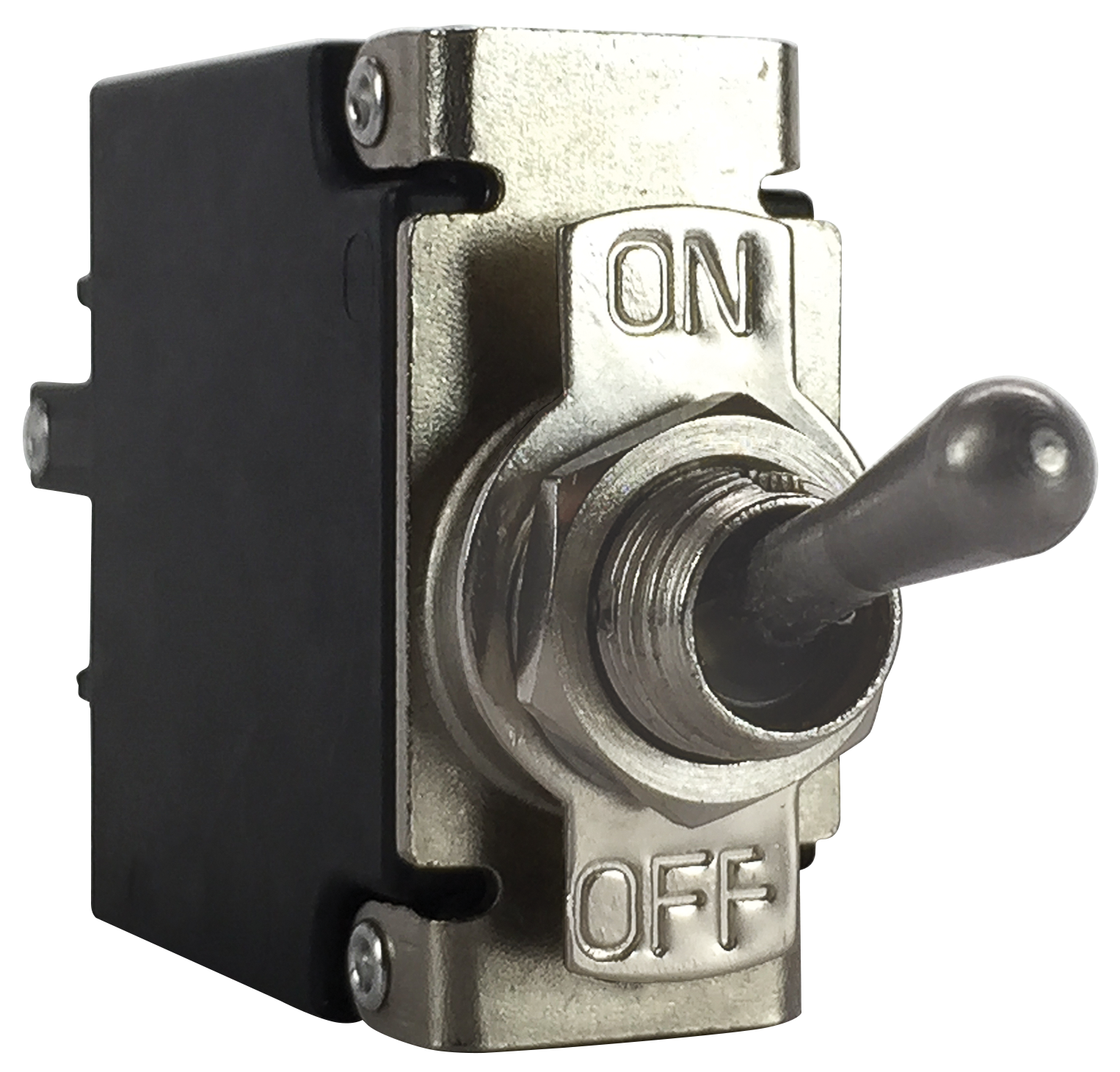

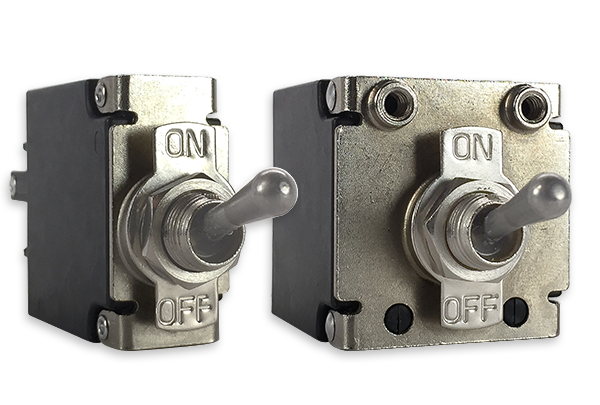

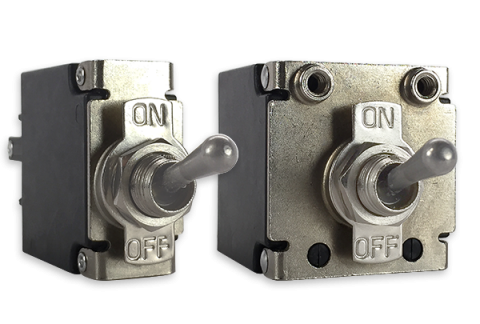

MS-Series
MIL-Spec, COST sealed toggle hydraulic magnetic circuit breaker. 1-3 poles; 0.20 - 30 amps; 65VDC, 240VAC, 120/240VAC; UL, CUL Recognized, TUV Certified.
- COTS Military Applications:
- Vehicles
- Communication Equipment
- Generators
- Power Supplies
Designed and tested to operate flawlessly in the harshest of environments, Carling Technologies' MS-Series sealed toggle circuit breaker is ideally suited for COTS (commercial off the shelf) military applications. Our space saving envelope meets IP68 requirements and features a durable metal and sealed mounting bushing with MIL-PRF-39019F ingress protection when mounted in a panel.
This class-leading, affordable circuit breaker was designed in accordance with the requirements of MIL-PRF-55629 and MIL STD 202, making it the best choice for those applications where shock, vibration, moisture resistance, salt spray and thermal shock are of the utmost consideration. The MS-Series’ compact size and reliability make it ideal for crucial communication equipment and other mission critical components.
ms series (1243.95 Kb)
