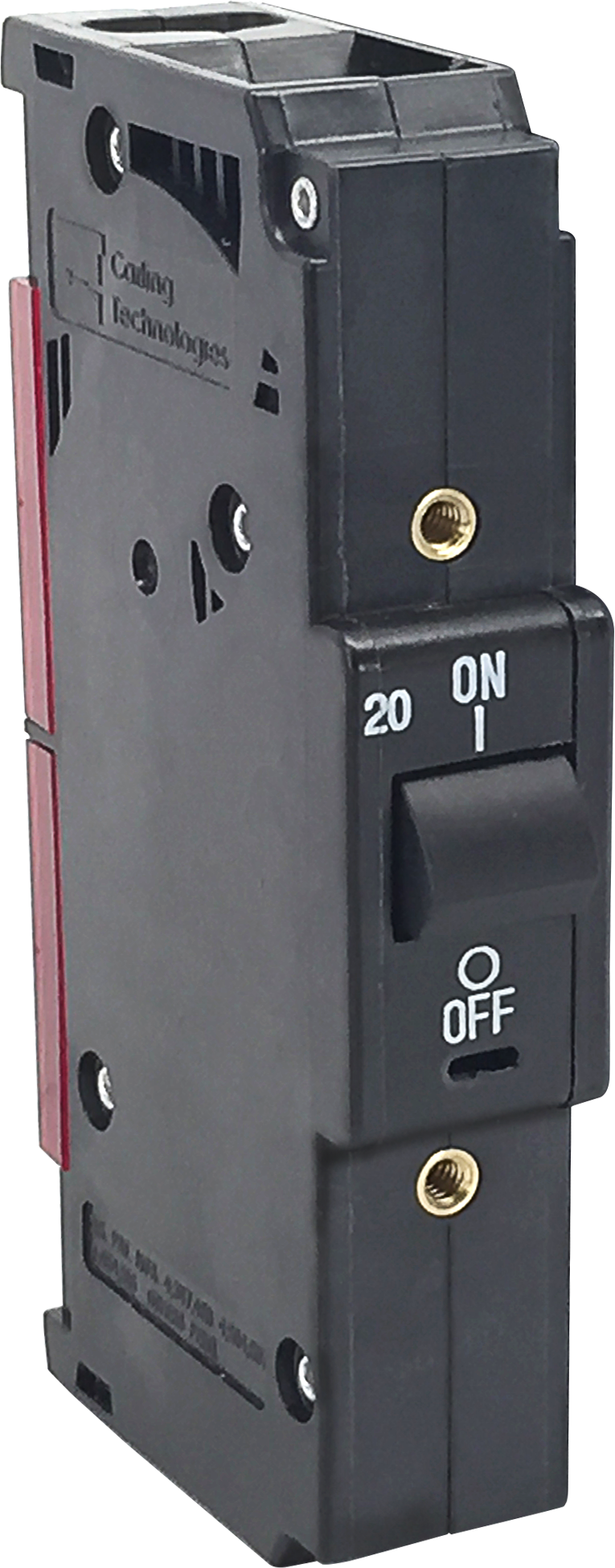

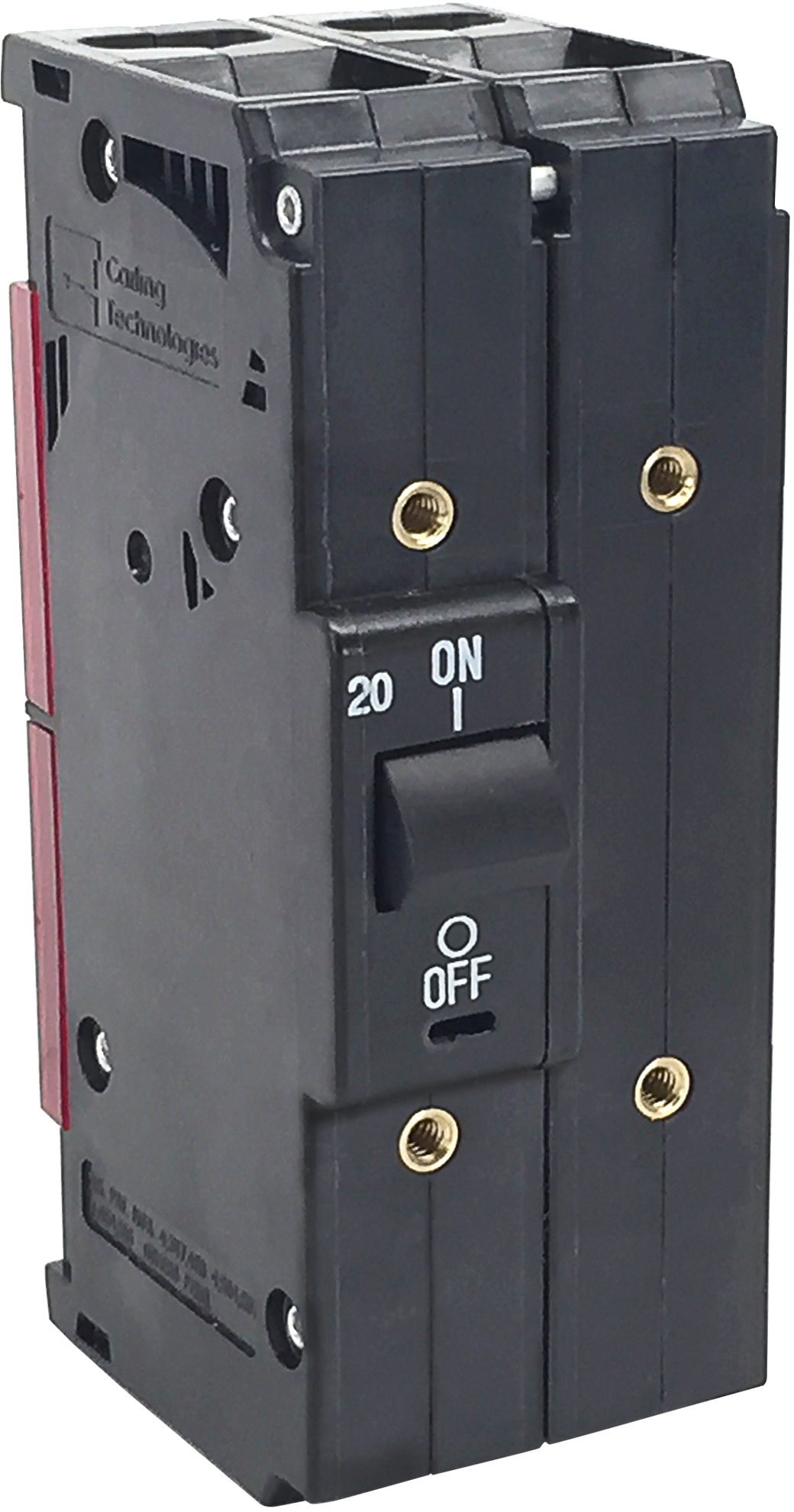

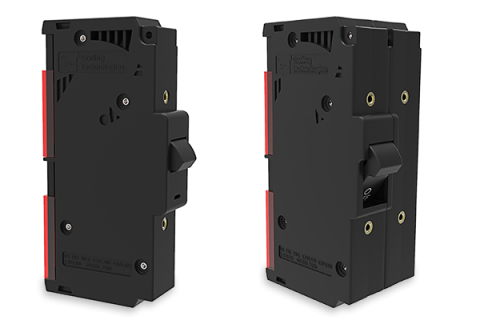

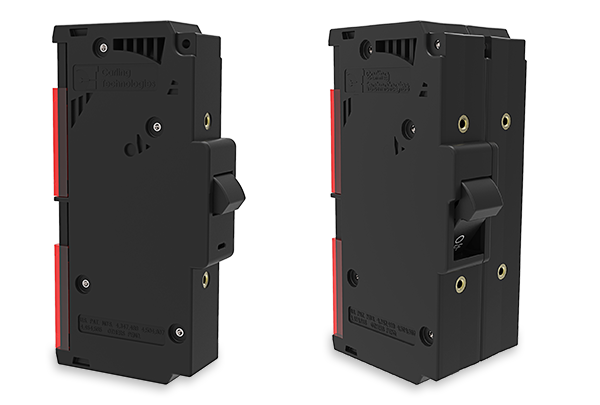

N-Series

Hydraulic magnetic circuit breaker ideal for datacom applications, PDUs and rack systems. Optional current monitor. 1-2 poles; 1-30 amps up to 240VAC, 277VAC, 120/240VAC; 22 000 Amps Max. Interrupting Capacity; UL489 compliant sliding terminals; EN60947-2 certified.

Product Type
N
  • Telecom/Datacom
  • Power Distribution Units
  • Data Servers
  • Data Storage

Carling Technologies’ high-performance N-Series hydraulic-magnetic circuit breaker is ideally suited for the rigors and confined spaces of telecom and datacom power distribution units and rack systems. Its innovative, low profile design features easily accessible load and line terminals and sliding barriers for effortless installation. With the integration of an optional current transformer, the N-Series is capable of sensing current down to a level of 1%. This optional capability provides precise current monitoring and reporting required for back billing of the actual power consumed by datacenter storage and routing devices. This feature also facilitates load adjustments and maximizes efficiency.

A patent pending, flush-rocker actuator and push-to-reset guard offer additional protection against accidental switching.
