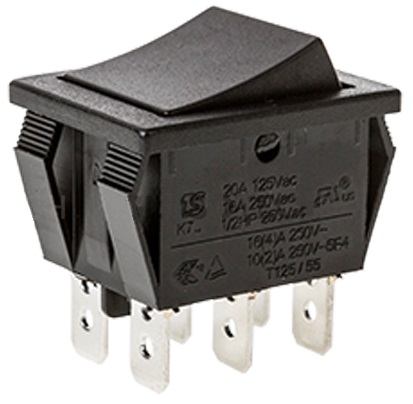

K7-Series

Product Type

Rocker Switches

Series

K7

Numberof Poles

1-2

Circuit

SPST:
ON-OFF
ON-ON
(ON)-OFF
ON-OFF-ON


SPDT:
(ON)-ON
(ON)-OFF-ON
(ON)-OFF-(ON)


DPST:
ON-OFF
(ON)-OFF


DPDT:
ON-OFF-ON
(ON)-OFF-ON
(ON)-OFF-(ON)
ON-ON
(ON)-ON

Rating

20A/125VAC
16A/250VAC
3/4HP 250VAC
1/3HP 125VAC
16(4A 250VAC 5E4

Dimensions

Lenght: 31.5

Width: 25

Height: 19

Unit: mm

Compliances

UL; ENEC; TUV; CE

Termination

6.3x0.8 QC

Body Color

Black; White; Gray; Red; Customized

Cover Color

Black; White; Red; Customized
