V-Series, Vontura IV

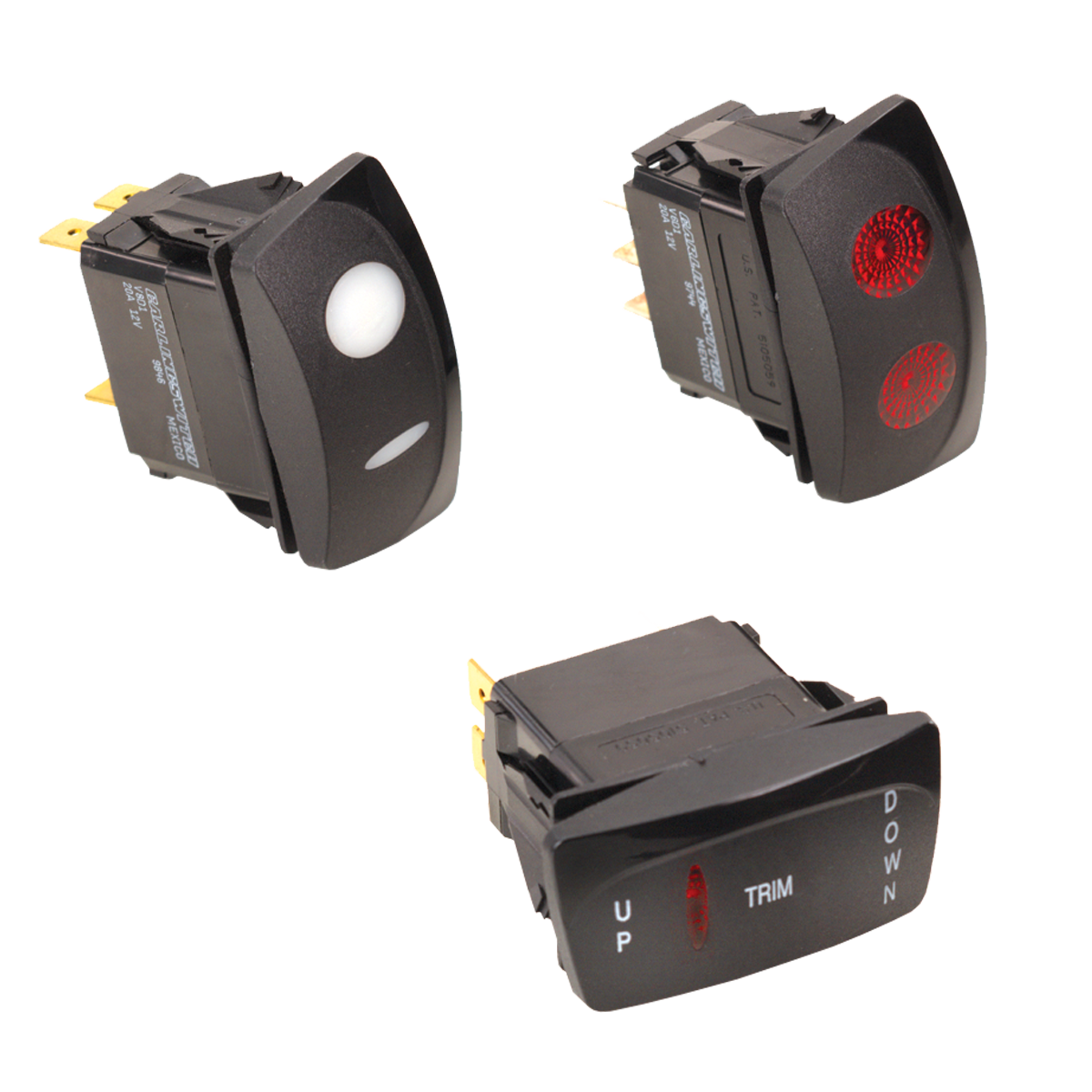

The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness.

Certified to IP66/68, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C.

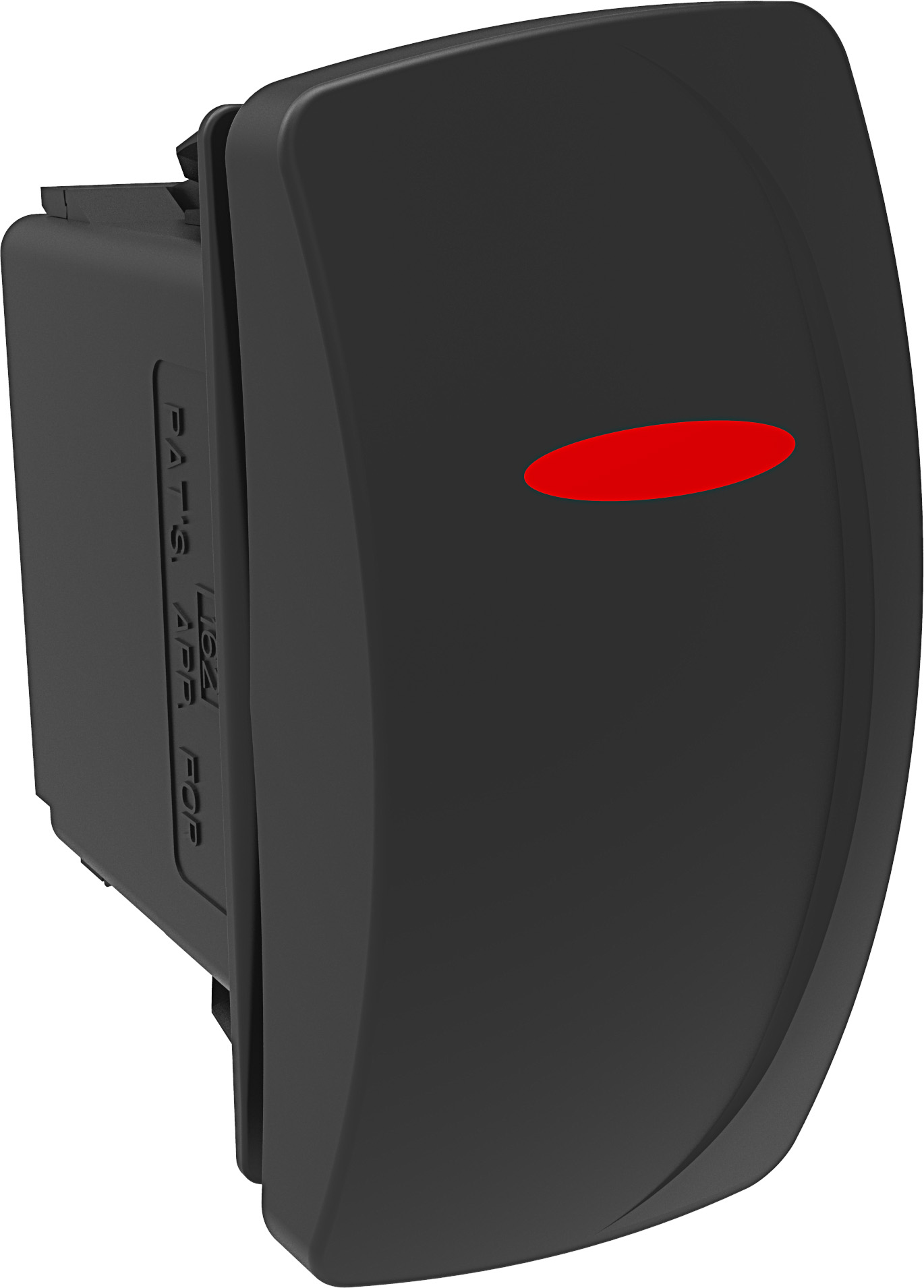

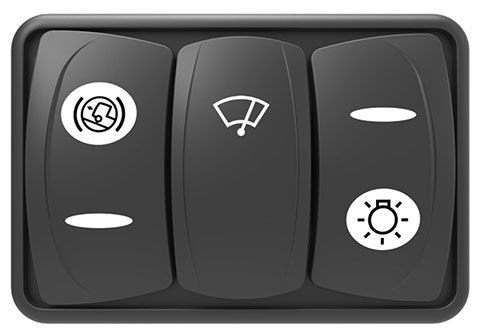

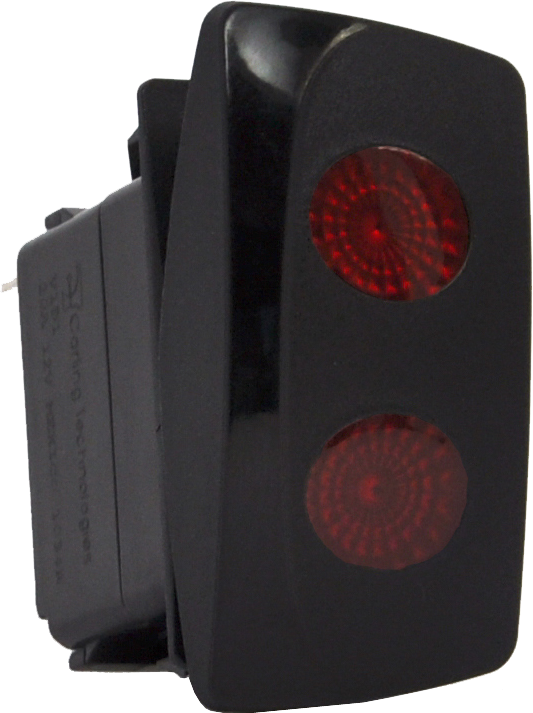

The Contura IV features an asymmetrical “orange wedge” shaped actuator that can be mounted as half-moon, triangle, pyramid or stack. The Contura V features a symmetrical curve and can be mounted alone, in groups, or between two Contura IVs. Both models are available with oval or elliptical lens and with optional laser etching.
