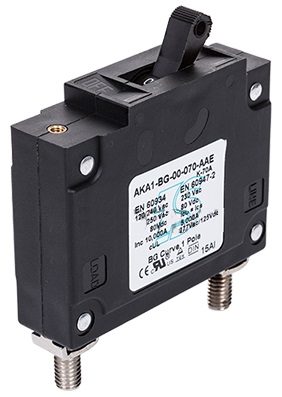

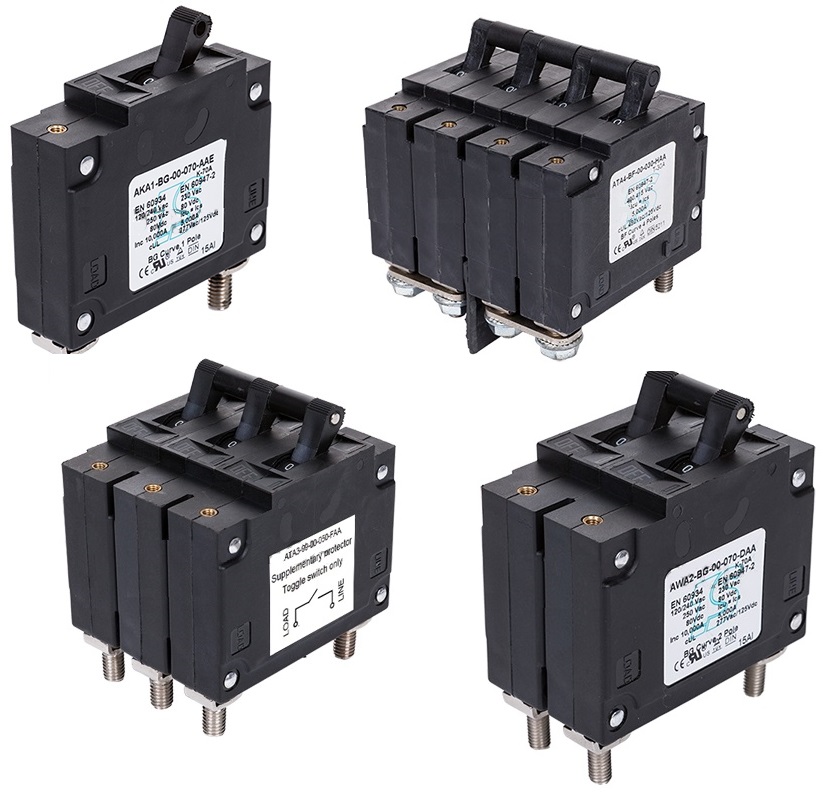

A-Series
Product Type
A
- Transportation
- Marine
- Telecom/Datacom Industry
- Military
- Renewable Energy Systems
- Commercial HVAC
- Generators & Welder Markets
|
Product Type |
Hydraulic-Magnetic Circuit Breakers |
|
Series |
A-Series |
|

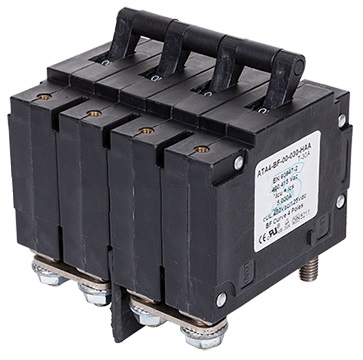

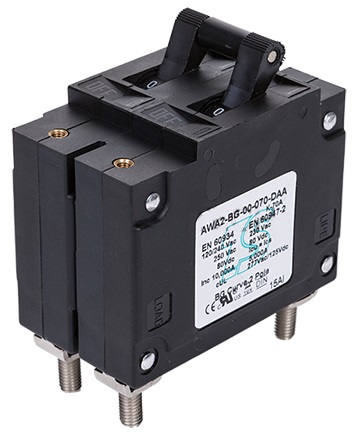

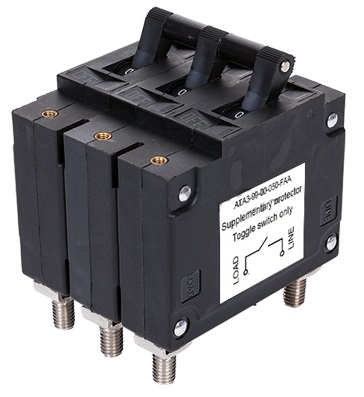

Number of poles |
1-4 poles |
|
Voltage |
125/250/277/415/480 Vac; 65/80/125 Vdc |
|
Current Ratings |
1A…100 Amp |
|
Mounting |
Rear Mounted, Snap-in Front Panel |
|
Reset Type |
Instantaneous, Short, Medium and Long Delay |
|
Operating Temperature |
-40°C (-40°F) to 85°C (185°F) |
|
Interrupt Capacity |
10,000A (PC1), EN60934, EN60947-2 |
|
Dimensions |
Lenght: 64.5 Width: 19 (1 pole) Height: 47.5 Unit: mm
|
|
RoHS |
Yes |
|
cUL1077; EN60934; EN60947; DIN; CE |
|
|
Termination |
M5, M6 Studs, Fuse Clip, #6-32 Stainless Steel |
