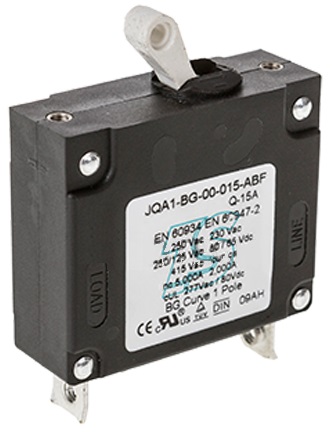

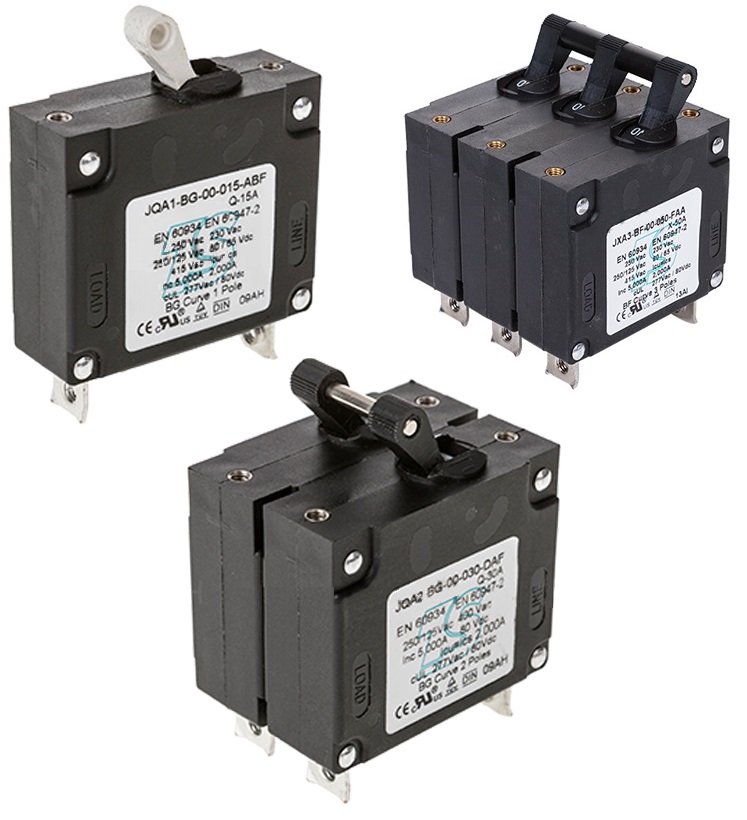

J-Series
Product Type
J
- Transportation
- Marine
- Telecom/Datacom Industry
- Military
- Renewable Energy Systems
- Commercial HVAC
- Generators & Welder Markets
|
Product Type |
Hydraulic-Magnetic Circuit Breakers |
|
Series |
J-Series |
|
Number of poles |

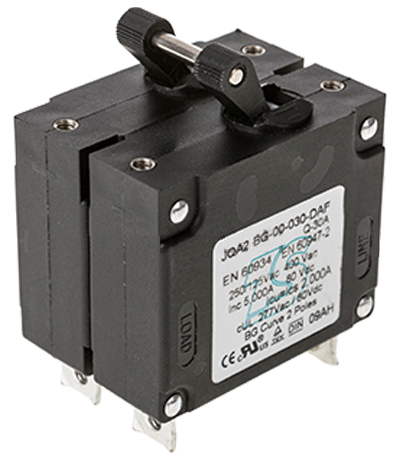

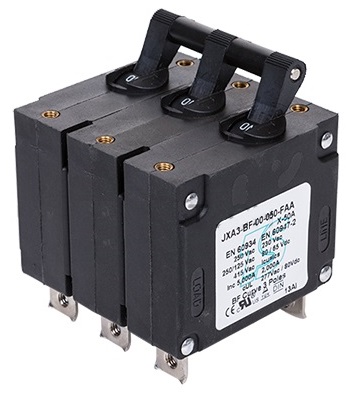

1-3 poles |
|
Voltage |
125/250/277/415/480VAC; 65/80 VDC |
|
Current Ratings |
1A…50 amp |
|
Mounting |
Rear Mounted, Snap-in Front Panel |
|
Operating Temperature |
-40°C (-40°F) to 85°C (185°F) |
|
Interrupt Capacity |
5,000A (PC1), EN60934, EN60947-2, cUL |
|
Dimensions |
Lenght: 50.9 Width: 19 Height: 42 Unit: mm
|
|
RoHS |
Yes |
|
cUL1077; EN60934; EN60947; DIN; CE |
|
|
Termination |
0.250"QC, M4, M5, 10-32 Side Screw |
